GGBS Ball Mill Grinding Plant

Cost-Effective GGBS Production – Reliable Ball Mill Systems for S75/S95 Slag Powder Complete GGBS grinding plant solutions from 100,000 to 600,000 TPY based on proven ball mill technology. Our open-circuit or closed-circuit GGBS ball mill systems with dynamic classifiers produce high-quality ground granulated blast furnace slag powder with Blaine fineness 400-550 m²/kg and 7-day activity index ≥80% for S95 grade. As a single-source GGBS grinding unit manufacturer, we provide flexible EPC or EP delivery covering raw slag drying, grinding, classification, storage, and bulk dispatch

ISO 9001 CE Certified 20+ Years Global Service

WhatsApp Chat Get Free Quote

Pain Points & Solutions Applicable Material Process Technical Specifications Proven Performance Quality FAQ Contact Us Related Cases

Pain Points & Solutions

Pain Point

Our Solution

1 High Investment Cost for VRM Systems-Vertical roller mills deliver efficiency but require 2-3 times the capital investment of a ball mill system, making financing difficult for small and medium producers.

Optimized Ball Mill GGBS Grinding Unit: Our closed-circuit ball mill system for GGBS achieves specific power consumption of 38-45 kW·h/t for 450 m²/kg Blaine, with an initial investment 40-50% lower than a comparable VRM plant. Faster ROI and easier project financing.

2 Moisture-Related Blockage & Low Output-Wet granulated blast furnace slag with 8-15% moisture clogs standard mills and reduces grinding efficiency dramatically.

Integrated Slag Dryer & Hot Air Swept Mill: Our GGBS production line includes a dedicated rotary slag dryer or utilizes a hot gas generator integrated with the ball mill. Feed moisture is reduced to <1% before entering the grinding chamber, ensuring maximum throughput.

3 Inconsistent Blaine & Activity Index-Simple open-circuit GGBFS grinding mills produce a wide particle size distribution, failing the 7-day activity index required for S95 grade.

Closed-Circuit with High-Efficiency Separator: Our closed-circuit GGBS ball mill uses a dynamic classifier to precisely control the product Blaine (400-550 m²/kg). Coarse particles are recirculated to the mill; only on-spec fines enter the product silo. We guarantee 7-day activity index ≥80% for S95 grade

4 High Wear Cost from Abrasive Slag-Slag is 2-3 times more abrasive than clinker, causing rapid wear of standard mill internals.

Advanced Wear-Resistant Design: Mill liners use high-manganese steel (Mn13) or high-chromium cast iron. Grinding media are high-chrome balls. Liner life is extended to 8,000-12,000 hours, significantly reducing maintenance costs per ton of GGBS

Looking for professional ball mill solutions? Get expert guidance for your grinding requirements Chat with engineer or Send inquiry

Applicable Material

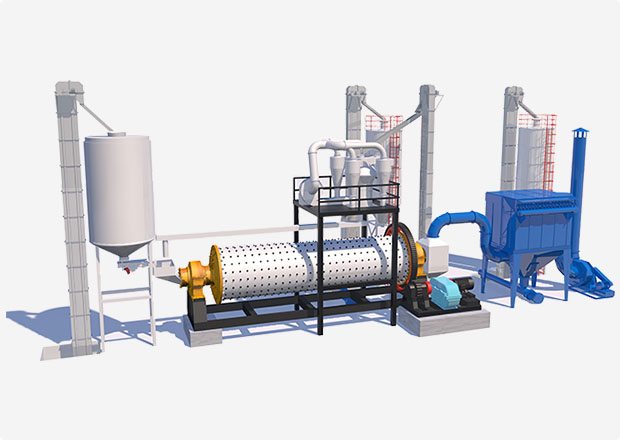

Our GGBS ball mill grinding plant is a complete, integrated production facility engineered to produce high-quality ground granulated blast furnace slag powder. We deliver the plant as an EPC or EP project, covering process design, equipment supply, and commissioning.

System Scope of Supply (GGBS Ball Mill Unit)

Core Process Equipment:
· Wet slag receiving hopper with belt conveyor
· Slag dryer (rotary drum type, fuel: natural gas, coal, or waste heat)
· Dry slag storage silo
· Weighing belt feeder for precise slag and gypsum dosing
· GGBS ball mill (open or closed circuit, with wear-resistant lining)
· High-efficiency dynamic separator / classifier (for closed-circuit systems)
· Product cooling system
· GGBS storage silos (bolted steel or concrete)
· Bulk loading system for tanker trucks
· Optional: bag packing system (25/50 kg bags or 1.5-ton bulk bags)
· Baghouse dust collectors for entire plant (emission <10 mg/Nm³)
· Full PLC/DCS central control system

Raw Material Specification:
· Material: Granulated blast furnace slag (GBFS)
· Glass content: ≥85% (higher glass = higher reactivity)
· Moisture: 8-15% (as received)
· Particle size: <5 mm (granulated)
· Optional additive: gypsum (2-4% as grinding activator)

Product Grades We Guarantee (GGBS / GGBFS):

Grade	Blaine (m²/kg)	7d Activity Index	28d Activity Index	Market Application
S105 (Premium)	≥500	≥95%	≥105%	High-performance concrete
S95 (Standard)	≥400	≥75%	≥95%	Ready-mix, precast concrete
S75 (Eco)	≥300	≥55%	≥75%	Mass concrete, low-heat

Process

From Wet Slag to Premium GGBS Powder: How Your Ball Mill Grinding Plant Works

Wet Slag Intake & Drying – Wet GBFS (moisture 8-15%) is delivered to the plant and stored in a covered shed. It is fed into a rotary slag dryer, where hot gas (200-350°C) reduces moisture to <1%. The dried slag is conveyed to a buffer silo.
Dosing & Mill Feeding – The dried slag, along with a small percentage of gypsum (2-4% as activator), is precisely weighed and fed into the GGBS ball mill.
Grinding (Open or Closed Circuit) – In the ball mill, the slag is ground by cascading high-chrome steel balls. For open-circuit systems, the ground powder directly goes to storage. For closed-circuit systems, the mill discharge is conveyed to a dynamic separator.
Classification (Closed-Circuit) – The dynamic separator classifies the ground powder. Fine particles (Blaine 400-550 m²/kg) are sent to the product silo; coarse particles return to the mill inlet for further grinding. This loop ensures consistent Blaine and high activity.
Cooling & Storage – The finished GGBS powder is cooled to <80°C and stored in large bolted or concrete silos, where aeration ensures no caking.
Bulk Dispatch – The GGBS is loaded directly into bulk tanker trucks via a loading spout with integrated dust collection. A weighbridge ensures accurate billing.

Looking for professional ball mill solutions? Get expert guidance for your grinding requirements Chat with engineer or Send inquiry

Technical Specifications

Standard GGBS Ball Mill Grinding Plant Configurations

Annual Capacity (TPY)	Ball Mill Model	Motor Power (kW)	Circuit Type	Product Blaine (m²/kg)	Specific Power (kW·h/t)	Site Area (m²)
100,000	Φ2.4×13m	630	Open / Closed	400-500	45-50	8,000-12,000
200,000	Φ3.2×13m	1250	Closed-Circuit	420-550	40-45	15,000-20,000
300,000	Φ3.5×13m	1600	Closed-Circuit	420-550	38-42	20,000-28,000
400,000	Φ4.2×13m	2500	Closed-Circuit	420-550	36-40	28,000-35,000
600,000	2×Φ3.5m or Φ4.6m	2×1600 or 3550	Closed-Circuit	420-550	35-38	40,000+

*Note: Open-circuit configuration is available for ≤200,000 TPY and S75 grade. Closed-circuit with dynamic separator is recommended for S95/S105 grades. Specific power varies with slag grindability (HGI)

Key Performance Guarantees (GGBS Ball Mill System)

Parameter	Guaranteed Value
Product Blaine specific surface	Target ±20 m²/kg
7-day activity index (S95 grade)	≥75% (typically 80-85%)
28-day activity index (S95 grade)	≥95%
Product moisture	<0.5%
Specific power consumption (450 m²/kg)	≤42 kW·h/t
Dust emission	<10 mg/Nm³
Plant availability	>85% (annual)

Project Scope Options:
· Full EPC (Turnkey GGBS Plant): Complete plant from wet slag receiving to bulk GGBS dispatch, including civil, structure, dryer, ball mill, separator, silos, electrical, automation, and training.
· EP (Engineering & Equipment Supply): Design + supply of core equipment. Civil and erection by client under our supervision.
· GGBS Grinding Unit Supply: Supply of the ball mill, dynamic separator, and baghouse as a standalone grinding unit for integration into an existing plant.

Tell us your target annual capacity and slag source. We will configure the optimal GGBS ball mill production line and provide a firm price.

Proven Performance

Proven Performance: Global GGBS Ball Mill Plant Projects

Case 1: 200,000 TPY GGBS Grinding Plant, India
· Scope: Full EPC (Wet slag receiving to bulk loading)
· Configuration: Φ3.2×13m closed-circuit GGBS ball mill + dynamic separator + rotary slag dryer
· Raw Material: GBFS from local steel plant, moisture 12%, glass content 92%
· Product: S95 grade GGBS, Blaine 450 m²/kg, 7d activity 82%, 28d activity 98%
· Result: Commissioned in 12 months. Specific power 41 kW·h/t. Investment 45% lower than a VRM plant of same capacity. Product sold at a premium to ready-mix plants in the region.

Case 2: 300,000 TPY GGBS Production Line, Middle East
· Scope: Full EPC with hot gas generator
· Configuration: Φ3.5×13m closed-circuit ball mill + high-efficiency separator + hot gas generator (waste heat from steel plant)
· Raw Material: GBFS, moisture 10%
· Product: S95 and S105 dual-grade GGBS, Blaine 500 m²/kg for S105
· Result: Achieved 28 TPH at 500 m²/kg. 7d activity 96% for S105. Specific power 43 kW·h/t. The plant operates 24/7 with >90% availability.

Case 3: Upgrade from Open to Closed Circuit, Southeast Asia
· Scope: Retrofit (Added dynamic separator to existing Φ2.4×13m open-circuit ball mill)
· Original: 8 TPH, Blaine 380 m²/kg, only S75 grade, specific power 52 kW·h/t
· New: 11 TPH, Blaine 450 m²/kg, S95 grade, specific power 46 kW·h/t
· Result: Product grade upgraded from S75 to S95, selling price increased 30%. Capacity increased 37%. Project payback: 1.8 years.

Looking for professional ball mill solutions? Get expert guidance for your grinding requirements Chat with engineer or Send inquiry

Quality

GGBS Plant Delivery & Quality Assurance

· Single-Source Responsibility: We are the sole EPC or EP contractor for your GGBS ball mill grinding plant. No split responsibility between dryer, mill, separator, and silo suppliers.
· Slag Testing & Pilot Grinding: Before design, we analyze your GBFS sample for glass content, chemical composition, and grindability (HGI). A pilot ball mill test determines the optimal configuration and provides a guaranteed activity index report for your specific slag.
· Performance Test & Handover: A 72-hour continuous performance test verifies plant output, Blaine fineness, and activity index. The GGBS grinding unit is handed over only after meeting all contractual guarantees.
· After-Sales & Spare Parts: 12-month defect liability period. Mill liners, grinding media, separator rotors, and dryer components are stocked regionally. Operator training included.

FAQ

What is the cost of a GGBS ball mill grinding plant?

The GGBS plant cost depends on annual capacity (100,000-600,000 TPY) and configuration (open or closed circuit). A 200,000 TPY closed-circuit GGBS ball mill plant typically requires $4-8 million for full EPC. This is 40-50% lower than a VRM-based GGBS production line of the same capacity. We provide a detailed quotation within 24 hours.

1 Can a GGBS ball mill achieve S95 or S105 activity index?

Yes. Our closed-circuit GGBS ball mill with a high-efficiency dynamic separator consistently achieves S95 grade (7d activity ≥75%) and can produce S105 grade (7d activity ≥95%) when the slag glass content is >90% and the Blaine is controlled >500 m²/kg. We guarantee this through our pilot testing and separator technology.

2 What is the difference between a GGBS grinding plant, unit, and production line?

These terms are often used interchangeably. A GGBS grinding unit typically refers to a single mill system, while a GGBS grinding plant or GGBS production line refers to the complete facility from raw slag receiving to finished product dispatch. We supply both standalone GGBFS grinding mill units and complete turnkey plants.

3 Open circuit or closed circuit: which is better for GGBS ball mill?

Closed circuit with a dynamic separator is strongly recommended for S95/S105 grades. It reduces over-grinding, lowers specific power consumption by 10-15%, and ensures a steeper particle size distribution, which improves the 7-day activity index. Open circuit is suitable only for S75 grade or capacities <100,000 TPY.

4 How do you handle the high moisture of wet GBFS?

We integrate a rotary slag dryer before the ball mill, typically using natural gas, coal, or waste heat from a nearby steel plant. The dryer reduces moisture from 8-15% to <1%, ensuring the GGBS ball mill operates at maximum efficiency without clogging.

5 What is the specific power consumption of a GGBS ball mill?

For a closed-circuit ball mill producing GGBS at 450 m²/kg Blaine, specific power consumption is typically 38-45 kW·h/t, depending on slag grindability. This is higher than a VRM (32-38 kW·h/t), but the ball mill's significantly lower investment cost often results in a better overall project ROI for capacities up to 400,000 TPY.

Looking for professional ball mill solutions? Get expert guidance for your grinding requirements Chat with engineer or Send inquiry

Contact Us

Ready to Start Your GGBS Ball Mill Grinding Plant Project?

Send an inquiry. You will receive:

A complete GGBS ball mill plant proposal tailored to your capacity, slag source, and target grade (S75/S95/S105).
A process flow sheet, equipment list, and firm EPC or EP price.
A detailed project schedule from design to commissioning.

Your slag source details and project plan are strictly confidential.
