High-Whiteness, Ultra-Fine Clay Grinding with Zero Iron Contamination & Precise Particle Control Specialized ball mill technology for kaolin, bentonite, ball clay, fire clay, and other industrial clay minerals. From ceramic-grade body powders to paper coating pigments, our systems deliver high whiteness retention, narrow particle size distribution, and low operating cost — chosen by ceramic, refractory, and non-metallic mineral processing plants worldwide.

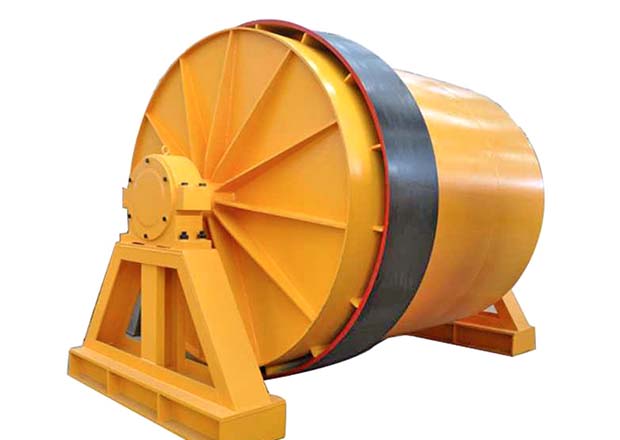

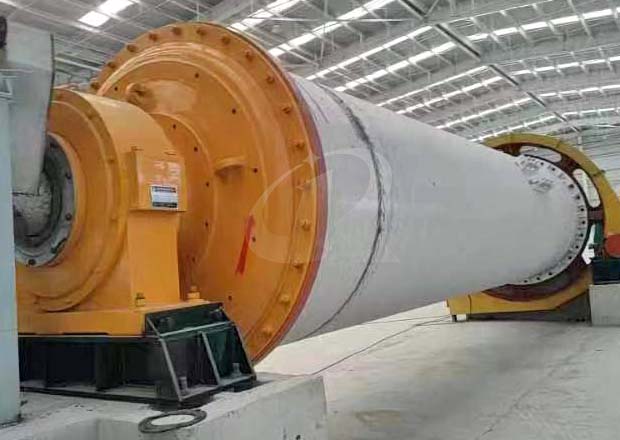

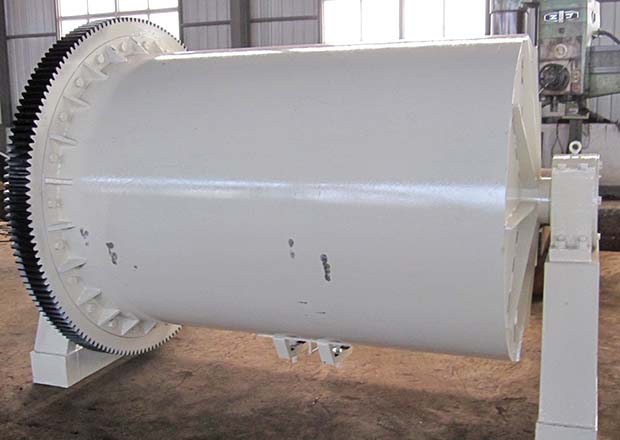

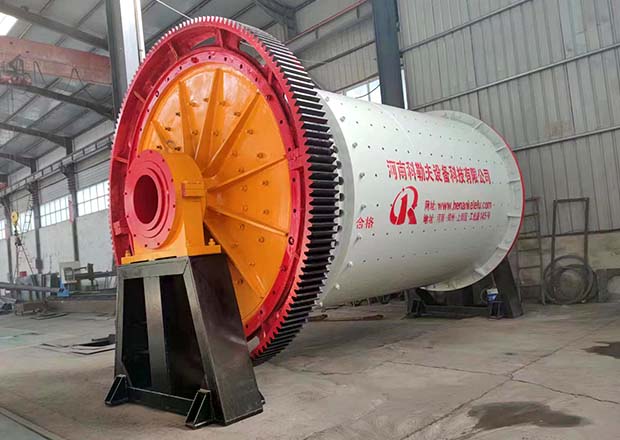

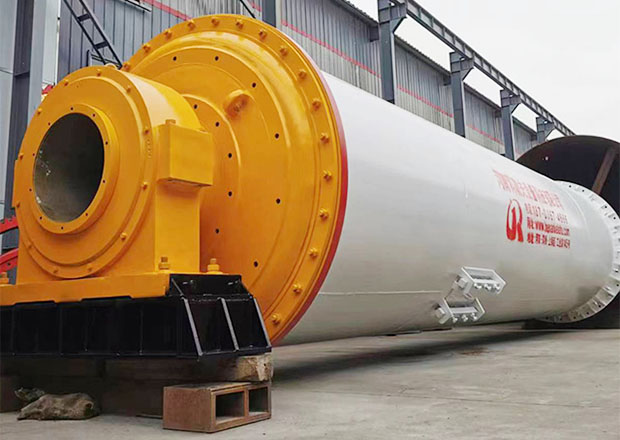

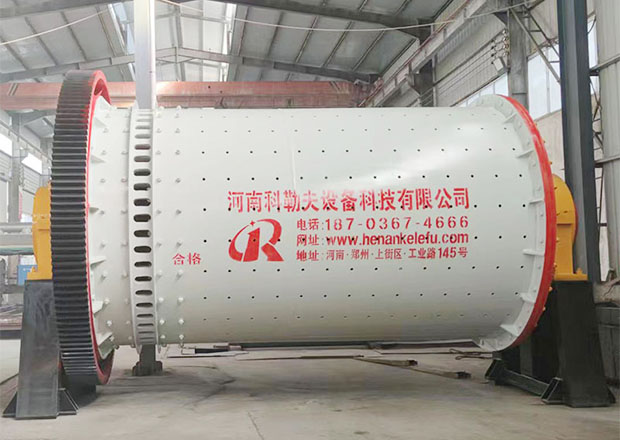

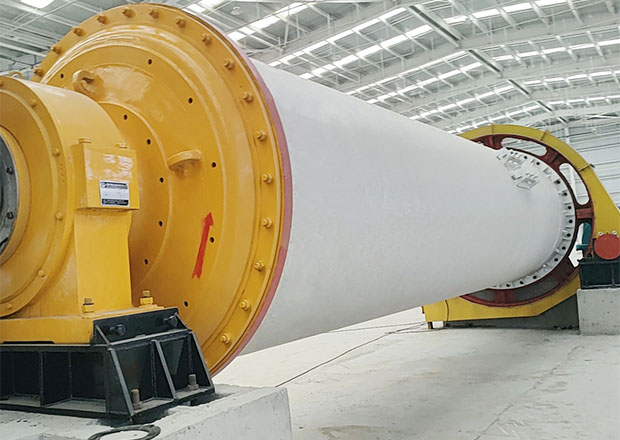

Our clay ball mill is a high-efficiency horizontal grinding system designed for producing consistent, high-purity clay powders and slips. Available in dry or wet configurations with ceramic lining, it serves the ceramic, paper, refractory, paint, and chemical industries.
Materials & Process Flexibility
Our clay ball mill handles a broad spectrum of clay minerals and process conditions:
Core Clay & Non-Metallic Minerals:
· Kaolin / China clay — paper coating, ceramics, paint, rubber, cosmetics, fiberglass
· Ball clay — ceramic body plasticizer, tableware, sanitaryware
· Fire clay / refractory clay — refractory bricks, mortars, foundry
· Bentonite — drilling mud, cat litter, iron ore pelletizing, waterproofing, landfill liner
· Ceramic clay body mixes — wall and floor tiles, porcelain, vitreous china
· Feldspar — ceramic flux, glassmaking
· Quartz / silica — ceramic glaze, glass, filler
· Talc — paper, cosmetics, paint, ceramics
· Calcium carbonate (marble/limestone) — paper filler, paint, plastics
· Dolomite — glass, ceramics, refractory
· Other industrial minerals and chemical powders
Process Options:
· Dry grinding with hot air — for moist clay (up to 15-20% moisture), simultaneous drying and pulverizing
· Dry grinding with air classifier — for precise particle size control in coating-grade kaolin and filler
· Wet grinding — for ceramic slip preparation, bentonite slurry, and paper coating
· Open circuit — simple layout for single-product clay powder
· Closed circuit — high output, precise fineness control, standard for high-value clay products
· Batch or continuous operation — batch for small specialty clays, continuous for large-scale production
From Clay Lump to Fine Powder or Slip: Engineered Precision in Every Step
Controlled Feeding – Clay lumps or filter cake (up to 50mm) are uniformly fed via a belt feeder or screw conveyor. For high-moisture clay, a hot air inlet at the feed end begins drying immediately.
Primary Grinding & Drying – Chamber 1 uses larger ceramic balls and wear-resistant alumina liners to break down clay lumps while hot air sweeps through, removing moisture. This simultaneous grinding and drying prevents clogging and maximizes throughput.
Controlled Material Transfer – A ceramic-lined intermediate diaphragm retains the grinding media while precisely transferring pre-ground clay to Chamber 2. The diaphragm prevents media carry-over and maintains whiteness.
Fine Grinding Zone – Chamber 2 employs smaller alumina balls and classifying liners to achieve the target fineness with minimal over-grinding. For ceramic bodies, particle size distribution is optimized for the required packing density and plasticity.
Classification & Collection – Discharge is conveyed to an air classifier or hydrocyclone. On-spec clay powder or slip is collected; oversize particles return to the mill for regrinding. A baghouse filter ensures clean emissions <10 mg/Nm³.
| Model | Dia.×Length (m) | Capacity (t/h) | Motor Power (kW) | Shell Speed (r/min) |
|---|---|---|---|---|
| Φ1.5×5.7m | 1.5×5.7 | 1–3 | 90 | 29.7 |
| Φ1.8×7m | 1.8×7 | 3–6 | 185 | 25.4 |
| Φ2.2×7m | 2.2×7 | 6–10 | 245 | 24.5 |
| Φ2.4×8m | 2.4×8 | 10–15 | 315 | 22.4 |
| Φ3.2×9m | 3.2×9 | 20–35 | 800 | 18.7 |
Capacity based on dry kaolin/ball clay (feed moisture ≤5%, product 200 mesh). For higher moisture or finer product, capacity reduces. Custom sizes available.*
| Parameter | Value |
|---|---|
| Feed material | Clay lumps, filter cake (max size ≤50mm) |
| Feed moisture | Up to 15-20% (with hot air system) |
| Product fineness | 100 – 1250 Mesh (0.15 – 0.010 mm) |
| D97 target range | 10 – 45 µm (adjustable via classifier) |
| Grinding method | Dry (hot air) / Wet |
| Circuit type | Open‑circuit / Closed‑circuit (with air classifier or hydrocyclone) |
| Number of chambers | 1, 2, or 3 |
| Liner material | High alumina ceramic (92-99% Al₂O₃) / Flint / Rubber |
| Grinding media | Alumina balls / Flint pebbles / Porcelain balls |
| Dust emission | <10 mg/Nm³ (baghouse filter) |
| Whiteness retention | Iron contamination <20 ppm; whiteness loss <0.5% |
Complete Range for Every Clay Application
Our product line covers everything from small ceramic workshops to large-scale kaolin processing plants. Whether you need a dry grinding system with hot air for moist ball clay, a wet slip preparation circuit for sanitaryware, or an ultra-fine closed-circuit system for paper coating kaolin, our ball mills deliver. As an experienced ball mill manufacturer, we support your project from clay testing to custom design, installation, and after-sales service.
For Engineers & Procurement:
For ceramic-grade clays where whiteness is critical, ceramic-lined mills with alumina or flint media are mandatory. For high-moisture feed (>5%), integrate a hot air generator for simultaneous drying. For paper coating kaolin requiring D97 <15µm, a closed-circuit system with high-efficiency air classifier is recommended.
Tell us your clay type, required capacity, target fineness, and whiteness sensitivity. We will engineer the optimal ball mill solution.
Proven Performance: Global Clay Processing Field Results
Case 1: 100,000 TPY Kaolin Processing Plant, Southeast Asia
· Model: Φ3.2×9m Closed-Circuit Ball Mill with Air Classifier
· Feed: Washed kaolin filter cake (18% moisture)
· Product: Paper coating grade kaolin, D97 <15 µm, whiteness >90% ISO
· Result: Achieved 30 TPH dry output, whiteness loss <0.3% (ceramic lined), replacing an old Raymond mill. Energy consumption reduced by 20%.
Case 2: Ceramic Body Preparation Plant, Europe
· Model: Φ2.4×8m Wet Batch Ball Mill (2 units)
· Feed: Ball clay, kaolin, feldspar, silica sand
· Product: Ceramic slip for tableware, residue <0.5% on 63µm sieve
· Result: Slip consistency and casting rate significantly improved over the previous pebble mill. Alumina lining and balls ensured iron-free grinding for white body production.
Case 3: Bentonite Grinding Plant Upgrade, Middle East
· Model: Φ2.2×7m Dry Ball Mill with Hot Air & Air Classifier
· Feed: Bentonite lumps (12% moisture)
· Product: Drilling grade bentonite powder (200 mesh), API 13A compliant
· Result: Output doubled from 5 to 10 TPH after switching from open to closed circuit with dryer integration. Oil adsorption and swell index improved.
Whiteness & Quality Assurance: Beyond ISO 9001
· Whiteness Guarantee: For ceramic-lined clay ball mills, we guarantee iron contamination <20 ppm and whiteness loss <0.5% ISO. We measure whiteness on your sample before and after our pilot grind and commit to the result in full-scale.
· Pre-Delivery Test Run: Every clay mill is test-assembled and run without load before shipment. Ceramic liner integrity is inspected.
· Long-Life Ceramic Components: Our alumina liners and balls are sourced from top Chinese ceramic manufacturers, with guaranteed Al₂O₃ content (92%, 95%, or 99%) and wear rate.
· Process Performance Guarantee: We contractually guarantee capacity, product fineness, and specific energy consumption based on agreed feed specification.
Ready to Start Your Clay Processing Project?
Send an inquiry. You will receive:
A detailed quotation matching your clay type, capacity, fineness, and whiteness requirements.
A complete equipment list and plant layout drawing for your clay grinding system.
Reference cases from similar clay processing projects.
Your project details and samples are handled confidentially.
