Complete Barite Grinding Plants – High Density, API Grade, Low Energy Cost Turnkey barite powder production lines from 30,000 to 200,000 TPY. Our integrated closed-circuit ball mill or Raymond mill systems with high-efficiency air classifiers deliver API-grade barite powder with density ≥4.20 g/cm³, 200 mesh ≥97% passing, and specific energy consumption as low as 28 kW·h/t. Whether producing oil drilling weighting agent, chemical grade barite, or paint-grade filler, we provide full EPC services from raw ore crushing to bagged powder dispatch — trusted by oilfield service companies and barite processors worldwide.

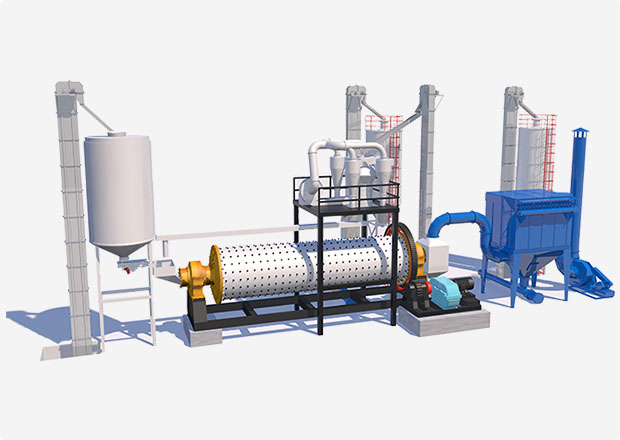

Our barite powder production line is a complete, integrated facility engineered to produce high-density, API-grade barite powder from raw barite ore. We deliver the entire plant as a single-source EPC project.
System Scope of Supply
Core Process Equipment:
· Raw barite receiving hopper with grizzly and belt conveyor
· Jaw crusher + hammer crusher or impact crusher (two-stage crushing to ≤20 mm)

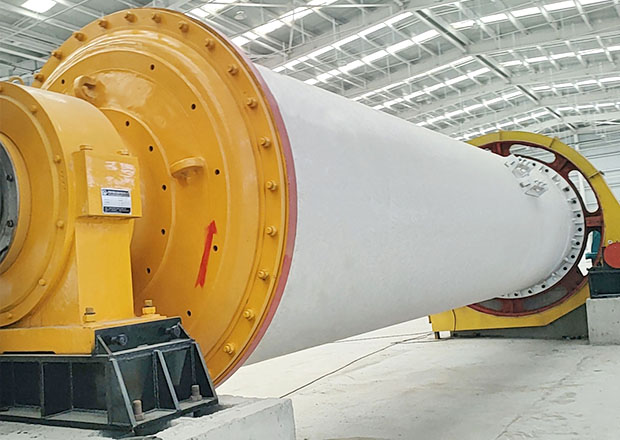

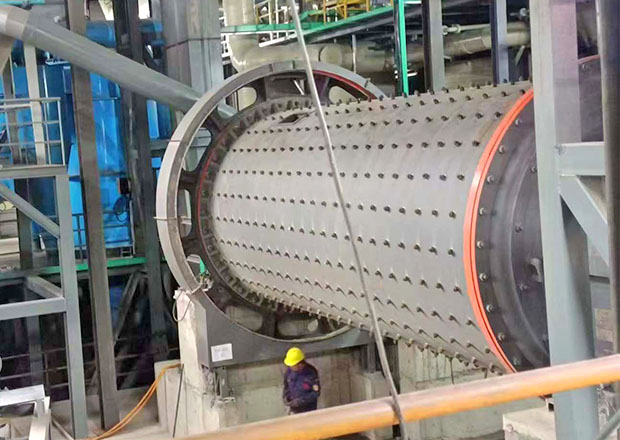

· Barite grinding mill: horizontal ball mill or Raymond/vertical roller mill (closed circuit)
· High-efficiency air classifier (turbo or cage-rotor type)
· Product silos (steel bolted or concrete)
· Automatic weighing and bag packing system (25/50 kg or 1.5-ton bulk bags) + bulk loading
· Integrated baghouse dust collectors for entire plant (emission <10 mg/Nm³)
· Full PLC/DCS central control system with online particle size and density monitoring
· Optional: magnetic separator for iron removal (for high-purity chemical grade barite)
Raw Material Specifications:
· Barite ore / Baryte (BaSO₄ ≥90%, typical 92-95%)
· Feed particle size: ≤20 mm (after crushing)
· Moisture content: <5% (surface moisture)
· Mohs hardness: 3.0-3.5
· Specific gravity: 4.0-4.5 g/cm³
Finished Product Grades We Guarantee:
| Product Grade | BaSO₄ Content | Density (g/cm³) | Fineness (200 mesh) | Application |
|---|---|---|---|---|
| API Drilling Grade | ≥90% | ≥4.20 | ≥97% passing | Oil & gas drilling mud weighting agent |
| Chemical Grade | ≥95% | ≥4.30 | 325 mesh, D97=10-15µm | Barium salt production, glass, ceramics |
| Paint/Filler Grade | ≥92% | ≥4.15 | 325-800 mesh | Paint, rubber, plastics, radiation shielding |
| White Barite Powder | ≥90% | ≥4.10 | 200-325 mesh | High-end coatings, paper, cosmetics |
From Barite Rock to API-Grade Weighting Agent: How Your Plant Works
Raw Barite Crushing & Storage – Raw barite ore (≤600 mm) is crushed in a jaw crusher to <100 mm, then a hammer crusher or impact crusher reduces it to ≤20 mm. The granules are stored in a buffer silo for continuous mill feed.
Precise Dosing & Mill Feeding – The crushed barite is fed into the grinding mill at a controlled rate via a weighing belt feeder. The feed rate is automatically adjusted to maintain optimal mill load and classifier current.

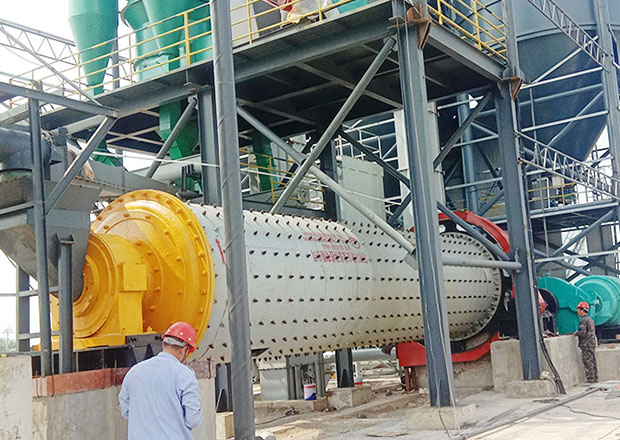

Closed-Circuit Grinding & Classification – The ball mill (or Raymond mill) grinds the barite to powder. The mill discharge is air-conveyed to a high-efficiency turbo classifier. On-spec powder (97% passing 200 mesh) passes through; coarse particles return to the mill for regrinding. This ensures a sharp top cut and high density.
Product Collection & Cooling – The finished barite powder is collected in a baghouse filter and passed through a product cooler to reduce temperature before storage.
Quality Control Sampling – An automatic sampler collects a representative sample every hour for density, particle size, and BaSO₄ content testing in the on-site lab.
Packaging & Dispatch – The API-grade barite powder is stored in product silos, then packed into 25/50 kg bags, 1.5-ton bulk bags, or loaded directly into bulk tankers. A weighbridge ensures accurate billing.
Standard Barite Powder Production Line Configurations (Ball Mill + Air Classifier)
| Plant Capacity (TPY) | Main Mill Model | Classifier Type | Product Fineness (mesh) | Specific Power (kW·h/t, 200 mesh) | Site Area (m², approx.) |
|---|---|---|---|---|---|
| 30,000 | Φ1.8×7m Ball Mill | Single Turbo | 200-325 | 30-35 | 5,000-8,000 |
| 50,000 | Φ2.2×7m Ball Mill | Single Turbo | 200-325 | 28-32 | 8,000-12,000 |
| 100,000 | Φ2.4×8m Ball Mill | Multi-stage Turbo | 200-800 | 26-30 | 12,000-20,000 |
| 150,000 | Φ3.2×9m Ball Mill | Multi-stage Turbo | 200-800 | 24-28 | 20,000-30,000 |
| 200,000 | 2×Φ2.4m or Φ3.5×13m | Multi-stage Turbo | 200-800 | 22-26 | 30,000+ |
*Raymond mill or vertical roller mill configurations are also available for capacities up to 50,000 TPY, offering lower initial investment. Ball mills are recommended for higher capacities and 325-mesh products.*
Key Performance Guarantees
| Parameter | Guaranteed Value |
|---|---|
| Product density (API grade) | ≥4.20 g/cm³ |
| Product fineness (200 mesh passing) | ≥97% |
| BaSO₄ content | ≥90% (or as per ore analysis) |
| Specific power consumption (200 mesh) | ≤32 kW·h/t |
| Wear parts life (mill liner) | ≥8,000 hours (high-Mn steel) |
| Dust emission | <10 mg/Nm³ |
| Plant availability | >85% (annual) |
EPC Project Scope Options:
· Full EPC (Turnkey): Complete plant from raw barite receiving to bagged/bulk powder dispatch, including civil, structure, crushing, grinding, classification, dust collection, electrical, automation, and training.
· EP (Engineering & Equipment Supply): Design plus supply of all core equipment. Civil works and erection by others, with our supervision.
· Core Grinding & Classification System: Supply of ball mill, air classifier, and baghouse only.
Tell us your target annual output, raw barite specification, and required product grade (API, chemical, paint). We will prepare a complete barite powder production line proposal with flow sheet, equipment list, and firm EPC price.
Proven Performance: Global Barite Processing Plant Projects
Case 1: 100,000 TPY API Grade Barite Powder Plant, Middle East
· Scope: Full EPC (Raw barite ore to bagged powder)
· Configuration: Jaw crusher + hammer crusher + Φ2.4×8m closed-circuit ball mill + multi-stage turbo classifier
· Raw material: Barite ore, BaSO₄ 93%, specific gravity 4.25
· Product: API drilling grade barite powder, 200 mesh 98% passing, density 4.22 g/cm³
· Result: Commissioned in 10 months. System power 28 kW·h/t. Product certified to API 13A by independent lab. Customer became a leading supplier to national oil company.
Case 2: 50,000 TPY Ultra-Fine Barite Powder Line, South Asia
· Scope: Full EPC with magnetic separator
· Configuration: Φ2.2×7m ceramic-lined ball mill + high-precision air classifier + HGMS
· Product: Chemical grade barite, 325 mesh, D97=15µm, BaSO₄ 96%, whiteness 90%
· Application: Barium carbonate and barium sulfate production
· Result: Iron-free grinding preserved product whiteness. Ultra-fine particle size improved barium salt reaction efficiency by 15%.
Case 3: Plant Upgrade: From Open to Closed Circuit, Africa
· Scope: Retrofit (added air classifier, upgraded mill internals)
· Original: Open-circuit Raymond mill, 5 TPH, 200 mesh 85% passing, density 4.10
· New: Closed-circuit system, 8 TPH, 200 mesh 97% passing, density 4.21
· Result: Capacity increased 60%, product quality upgraded to meet API specification, opening access to international oilfield markets.
EPC Delivery & Barite Quality Assurance
· Single-Source EPC Responsibility: We are the sole engineering, procurement, and construction partner for your barite plant. No split responsibility between crushing, grinding, and classification equipment suppliers.
· Barite Ore Analysis & Pilot Grinding: Before design, we analyze your barite ore for BaSO₄ content, specific gravity, and associated minerals (quartz, calcite, sulfides). A pilot grinding test determines the optimal mill type and produces a 10 kg sample with guaranteed density and particle size.
· API Performance Test & Handover: A 72-hour continuous performance test verifies plant output, product density, 200-mesh passing rate, and specific power consumption. The plant is handed over only after meeting all contractual guarantees.
· After-Sales & Wear Parts: 12-month defect liability period. High-Mn liners, classifier rotors, and grinding media are stocked regionally. Training for operators and lab technicians included.
Ready to Build Your High-Density Barite Powder Production Plant?
Send an inquiry. You will receive:
A complete barite powder production line proposal tailored to your ore type, capacity, and target product grade (API / Chemical / Paint).
A detailed process flow diagram, equipment list, and firm EPC price.
A project schedule from design to commissioning.
Optional: Free barite ore pilot grinding test with full density, particle size, and BaSO₄ analysis report.
Your barite ore data and business plan are strictly confidential.
