Energy Saving Ball Mill

Eenergy saving ball mill grinds material by rotating a cylinder with steel grinding balls, causing the balls to fall back into the cylinder and onto the material to be ground. The rotation is usually between 4 to 20 revolutions per minute, depending upon the diameter of the mill. The larger the diameter, the slower the rotation. If the peripheral speed of the mill is too great, it begins to act like a centrifuge and the balls do not fall back, but stay on the perimeter of the mill. The point where the mill becomes a centrifuge is called the

Output size 30-400 mesh

Capacity 0.5-100 t/h

Power 18.5kw-1000kw

ISO 9001 CE Certified 20+ Years Global Service

Get Free Quote WhatsApp Chat

Applicable Material Product Features Working Principle Technical Parameter Company Profile Related Cases

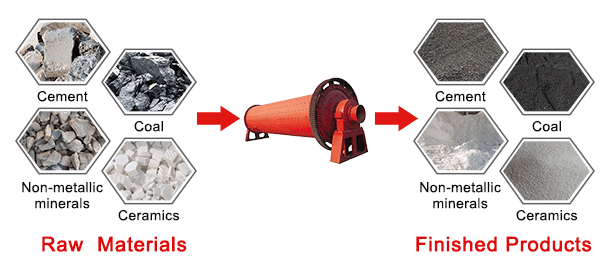

Applicable Material

energy saving ball mill is widely used in the manufacture industries, such as cement, silicate, new building material, refractory material, fertilizer, ferrous metal, nonferrous metal and glass ceramics and can be used for the dry and wet grinding for all kinds of ores and other grind-able materials.

Product Features

Working Principle

1.The ball mill is a horizontal rotating device transmitted by the outer gear. The materials are transferred to the grinding chamber through the quill shaft uniformly. There are ladder liner and ripple liner and different specifications of steel balls in the chamber.

2.The centrifugal force caused by rotation of barrel brings the steel balls to a certain height and impact and grind the materials. The ground materials are discharged through the discharging board thus the grinding process is finished.

Technical Parameter

Model	shell rotation speed (r/min)	Ball load (t)	Feeding size(mm)	Discharging size(mm)	Capacity (t/h)	Power (KW)	Weight (T)
900×1800	38	1.5	≤15	0.075 -0.89	0.65 -2	18.5	3.6
900×2100	38	1.3-1.4	≤20	0.075 -0.83	0.7-3.5	18.5	3.9
900×3000	38	2.7	≤20	0.075 -0.89	1.1-3.5	22	4.5
1200×2400	32	3.8	≤25	0.0745-0.6	1.5-4.8	30	11.5
1200×2800	32	3.3-3.5	≤25	0.0745-0.6	2-6	30	12.8
1200×3000	36	3.5	≤25	0.074-0.4	1.6-5	37	13
1200×4500	32	7	≤25	0.074 -0.4	1.6-5.8	45	13.8
1500×3000	27	8	≤25	0.074 -0.4	2-5	75	17
1500 ×3500	27	6.75-6.4	≤25	0.075 -0.4	3-7	75	17.5
1500×4500	27	14	≤25	0.074 -0.4	3.5-12	110	21
1500×5700	27	15	≤25	0.074 -0.4	3.5-8	115	24.7
1830×3000	24	18	≤25	0.074 -0.4	4-10	130	28
1800×3600	24	10.6-11.35	≤25	0.075 -0.4	5-22	130	30
1830*4500	25.4	15	<=25	0.074-0.4	4.5-12	155	32
1830×6400	24.1	21	≤25	0.074~0.4	6.5-15	210	34
1830×7000	24	25	≤25	0.074 -0.4	7.5-17	210	36
2100×3000	23.7	15	≤25	0.074-0.4	6.5-36	155	39
2100×3600	22	14-15.2	≤25	0.075 -0.4	15-36	370	42
2100×4500	23.7	24	≤25	0.074-0.4	8-43	245	43.8
2100×7000	23.7	26	≤25	0.074-0.4	8-48	280	56.6
2200×4500	21.5	27	≤25	0.074-0.4	9-45	280	45.5
2200×5500	21	30	≤25	0.074 -0.4	10-20	210	48.5
2200×6500	21	31	≤25	0.074 -0.4	14-26	380	52.8
2200*7000	21.7	35	<=25	0.074-0.4	15-28	380	54
2200×7500	21	33	≤25	0.074 -0.4	16-29	380	56
2400×3000	20.6	15.5-16.6	≤25	0.075 -0.4	22-24	245	59
2400×4500	21	30	≤25	0.074 -0.4	8.5-60	380	65
2700×3600	20.6	39	≤25	0.074 -0.4	12-70	400	91.3
2700×4000	20.7	40	≤25	0.074 -0.4	12-80	400	94
2700×4500	20.7	48	≤25	0.074 -0.4	12-90	430	102
3200×4500	18	65	≤25	0.075-0.4	30-90	800	137

Company Profile

Related Cases

Silica Grinding Production Line

The company is a local collection of ore mining, scientific research and development, production and manufacturing, technical services, technical consulting as one of the stone processing enterprises. Due to the need of business development, it is necessary to add a silica grinding production line. After the understanding and field investigation of our company, I was attracted by the professional technology and sophisticated process of Kolev Company, and purchased the complete set of silica grinding production line of our company.

Limestone Grinding Production Line

The company is a local building materials company engaged in the production and sale of limestone powder for a long time. The company adopts scientific management. Due to the development needs of the company, we need to develop high quality limestone products with good purity and fine particle size. After various understanding and field investigation, we are attracted by the professional technology and excellent process of Kolev Company, so we introduce advanced equipment and technology of our company and purchase the full set of limestone grinding production line of our company.

100,000 Tons Fly Ash Deep Processing Project

The company is Kazakhstan a large fly ash processing plant, set fly ash powder research and development, production and sales as one, the products are widely used in cement and concrete and related products. Now, due to the needs of market development, we need to add a high-quality fly ash deep processing production line again. After multiple understanding, comparison and repeated field investigation, we are attracted by the professional technology and sophisticated process of Kolev Company, and purchased the complete set of fly ash deep processing production line equipment of our company.

Gypsum Calcination Grinding Production Line Site

This company is a large local building materials Co., LTD., which is engaged in gypsum processing, production and sales. Due to the development needs of the company, we now want to add a gypsum processing line. Through the understanding and field investigation of our company, we are attracted by the professional technology and sophisticated technology of Kolev Company, so we purchased a full set of gypsum calcining modified grinding line of our company.

Limestone Grinding Powder Processing Project

The company is a local production, deep processing, sales in one of the lime production enterprises, the company's main calcium hydroxide, ash calcium powder, heavy calcium carbonate, light calcium carbonate, etc., with high-quality raw materials, the use of advanced equipment and production technology, the finished products are widely used in coating, building materials, sewage treatment and other fields. Due to the development needs, we need to add a limestone processing production line. After various communication, project analysis and field investigation, we were moved by the sincerity and professionalism of Kolev Company, and purchased the complete set of limestone grinding production line of our company.

Five tons per hour limestone grinding mill production line

The company is a local building materials company engaged in the production and sale of limestone mill. The company adopts scientific management. Due to the development needs of the company, we need to develop high quality limestone products with good purity and fine particle size. After various understanding and field investigation, we are attracted by the professional technology and excellent process of Kolev Company, so we introduce advanced equipment and technology of our company and purchase the full set of limestone grinding production line of our company.

Dolomite Ultrafine Grinding Project

The company is a local long - term engaged in ore grinding production and sales of building materials company. The company adopts scientific management, due to the development needs of the company, need to develop good purity, particle size fine and other high quality dolomite series products, through various understanding and field investigation, by the company's professional technology and sophisticated technology attracted, special introduction of my company's advanced equipment technology, purchased my company's full set of dolomite grinding production line.

limestone grinding production line put into operation
