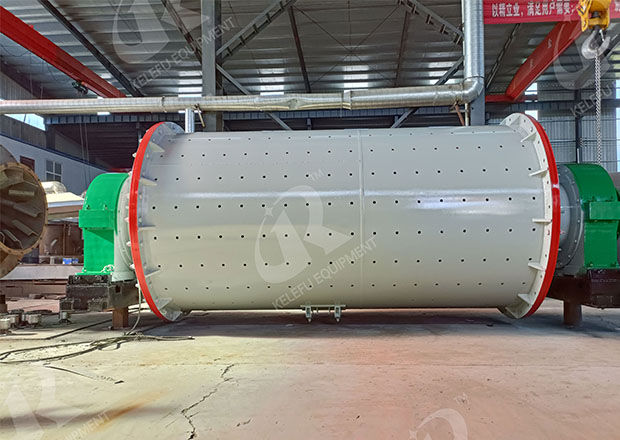

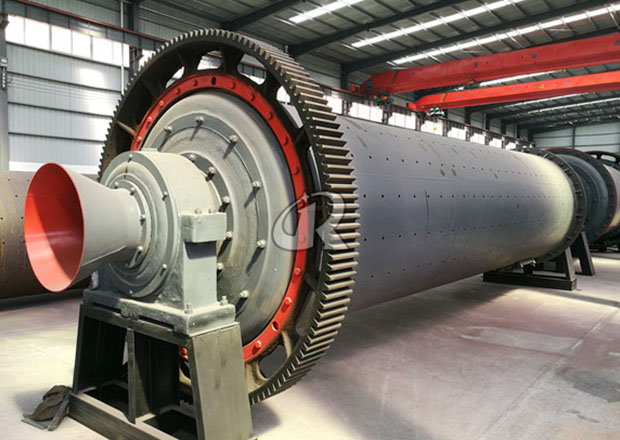

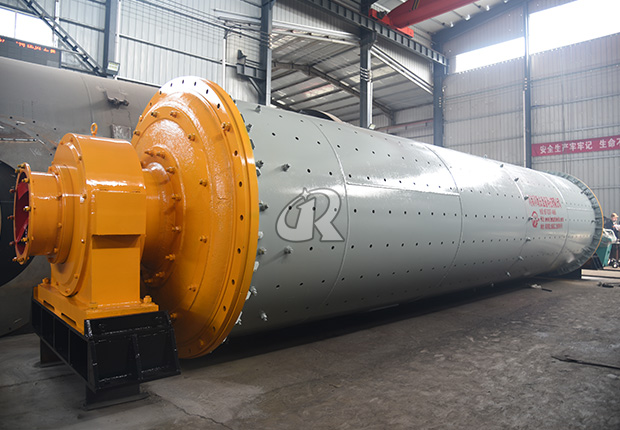

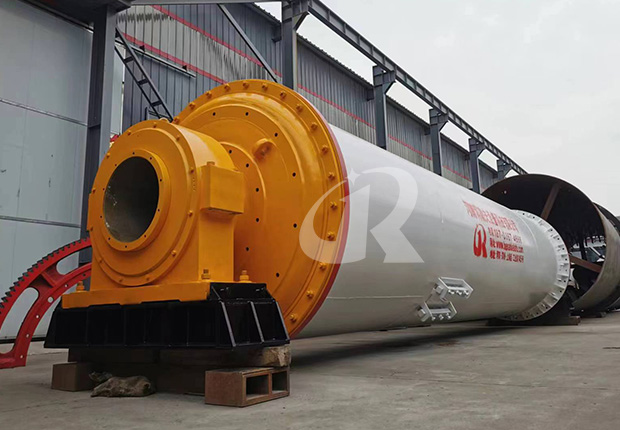

Ball Mill

The ball mill is the key equipment for grinding the material after it is crushed. Ball mill is widely used in dry or wet grinding of various ores and other grindable materials.

Output size 0.3mm-0.045mm (50-325mesh)

Feed size ≤25mm

Capacity 1.5-338t/h

Applicable materials Cement, limestone, gypsum, calcium carbonate, fly ash, feldspar, kaolin, dolomite, silica sand, quartz, copper ore, etc.grinding of various ores and other grinding materials.

ISO 9001 CE Certified 20+ Years Global Service

Get Free Quote WhatsApp Chat

Applicable Material Product Features Process Flow Chart Gallery Technical Parameter Related Product Company Profile Related Cases

Applicable Material

Cement, coal, power plant desulfurization, metallurgy, chemical industry, non-metallic mineral, construction material, ceramics.

Product Features

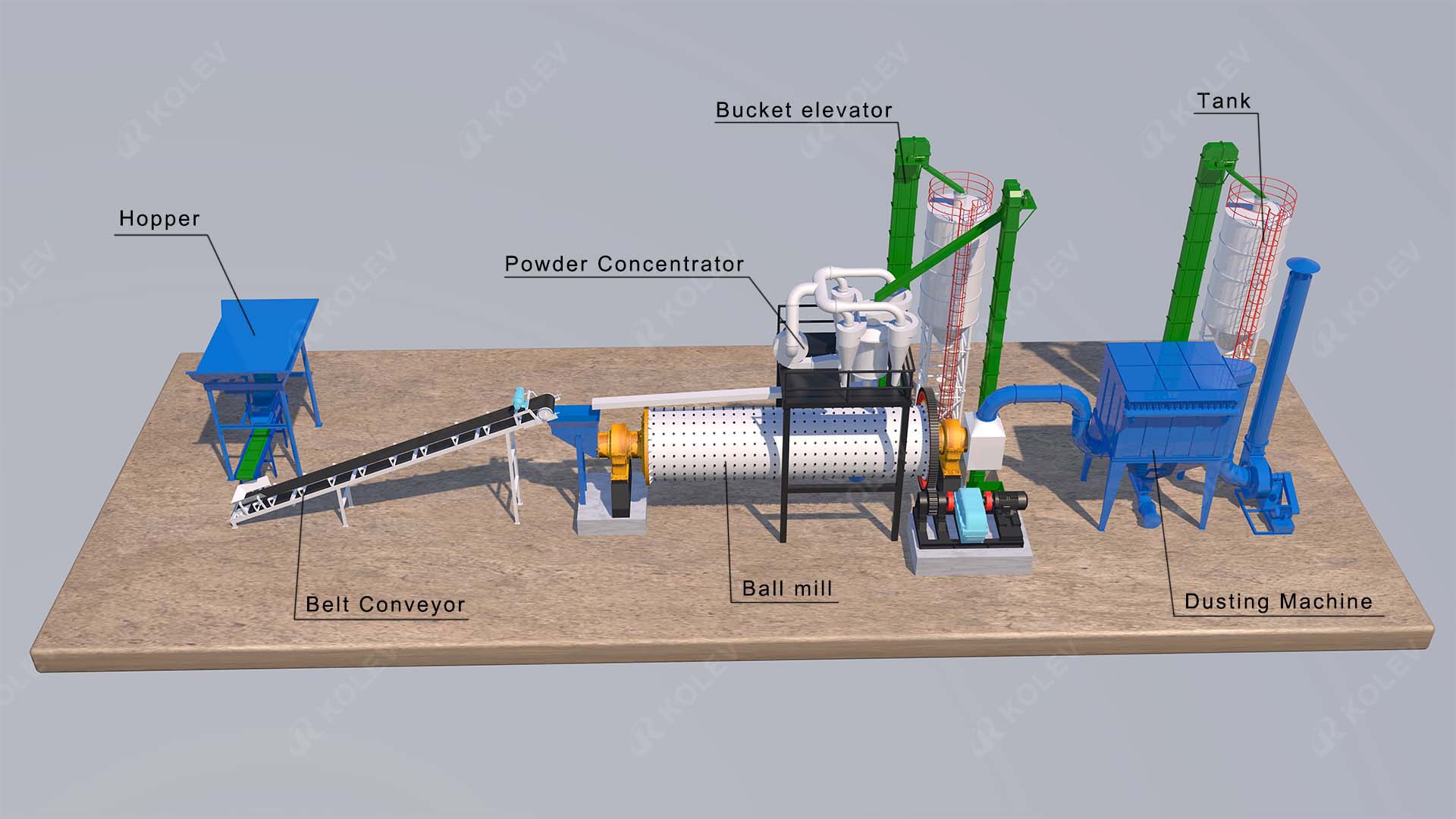

Process Flow Chart

1.The materials that meet the grinding particle size are unloaded into the large silo by the loader. A weighing and metering feeding device (belt metering scale) is arranged under the silo. The device is controlled by a microcomputer and automatically adjusts the feeding amount according to the capacity input parameters.
2.In order to ensure that the mill meets the production standards and reduces the consumption of grinding bodies, a permanent magnetic iron remover is suspended on the feeding belt conveyor to remove metal (physical iron) impurities in the raw materials.
3.This set of grinding scheme adopts a closed-flow (circular flow grinding) grinding process, that is, the mixed powder discharged from the ball mill first enters the powder selection machine for air selection, the fine ash directly enters the finished product warehouse, and the coarse ash returns to the ball mill for secondary grinding, thus forming a closed-loop grinding system.
4.Although the investment in the circle flow grinding system is larger, the fineness (particle size ratio) of the product is uniform, the quality is stable, and the output is much higher than that of the same model ball mill.

Gallery

Technical Parameter

Specification	Rotary speed（r/min）	ball load (t)	feed size(mm)	discharge size (mm)	output capacity (t/h)	Power (kw)	weight (t)
Ф900×1200	36-38	1.1	<20	0.074-0.4	0.4-1.1	11	4.21
Ф900×1800	36-38	1.5	<20	0.075-0.89	0.65-2	18.5	5.85
Ф900×2100	36-38	1.8	<20	0.075-0.89	0.6-1.5	18.5	6.66
Ф900×3000	36	2.7	<20	0.075-0.89	1.1-3.5	22	6.98
Ф1200×2400	36	3	<25	0.075-0.6	1.5-4.8	30	13.6
Ф1200×3000	36	3.5	<25	0.074-0.4	1.6-5	37	14.3
Ф1200×4500	32.4	5	<25	0.074-0.4	1.6-5.8	55	15.6
Ф1500×2400	30	7	<25	0.074-0.4	2.8-6.5	55	15.43
Ф1500×3000	29.7	7.5	<25	0.074-0.4	2--5	75	19.5
Ф1500×4500	27	11	<25	0.074-0.4	3--6	110	22
Ф1500×5700	28	12	<25	0.074-0.4	3.5-6	130	25.8
Ф1830×3000	25.4	11	<25	0.074-0.4	4--10	130	34.5
Ф1830×4500	25.4	15	<25	0.074-0.4	4.5-12	155	38
Ф1830×6400	24.1	21	<25	0.074-0.4	6.5-15	210	43
Ф1830×7000	24.1	23	<25	0.074-0.4	7.5-17	245	43.8
Ф2100×3000	23.7	15	<25	0.074-0.4	6.5-36	155	45
Ф2100×4500	23.7	24	<25	0.074-0.4	8-43	245	56
Ф2100×7000	23.7	26	<25	0.074-0.4	12-48	280	59.5
Ф2200×4500	21.5	27	<25	0.074-0.4	9-45	280	54.5
Ф2200×6500	21.7	35	<25	0.074-0.4	14-26	380	61
Ф2200×7000	21.7	35	<25	0.074-0.4	15-28	380	62.5
Ф2200×7500	21.7	35	<25	0.074-0.4	15-30	380	64.8
Ф2400×3000	21	23	<25	0.074-0.4	7-50	245	58
Ф2400×4500	21	30	<25	0.074-0.4	8.5-60	320	72
Ф2700×4000	20.7	40	<25	0.074-0.4	22-80	380	95
Ф2700×4500	20.7	48	<25	0.074-0.4	26-90	480	102
Ф3200×4500	18	65	<25	0.074-0.4	According To The Technological Conditions	630	149
Ф3600×4500	17	90	<25	0.074-0.4	According To The Technological Conditions	850	169
Ф3600×6000	17	110	<25	0.074-0.4	According To The Technological Conditions	1250	198
Ф3600×8500	18	131	<25	0.074-0.4	45.8-256	1800	260
Ф4000×5000	16.9	121	<25	0.074-0.4	45-208	1500	230
Ф4000×6000	16.9	146	<25	0.074-0.4	65-248	1600	242
Ф4000×6700	16.9	149	<25	0.074-0.4	75-252	1800	249
Ф4500×6400	15.6	172	<25	0.074-0.4	84-306	2000	280
Ф5030×6400	14.4	216	<25	0.074-0.4	98-386	2500	320
Ф5030×8300	14.4	266	<25	0.074-0.4	118-500	3300	403
Ф5500×8500	13.8	338	<25	0.074-0.4	148-615	4500	525

Company Profile

Related Cases

Silica Grinding Production Line

The company is a local collection of ore mining, scientific research and development, production and manufacturing, technical services, technical consulting as one of the stone processing enterprises. Due to the need of business development, it is necessary to add a silica grinding production line. After the understanding and field investigation of our company, I was attracted by the professional technology and sophisticated process of Kolev Company, and purchased the complete set of silica grinding production line of our company.

Limestone Grinding Production Line

The company is a local building materials company engaged in the production and sale of limestone powder for a long time. The company adopts scientific management. Due to the development needs of the company, we need to develop high quality limestone products with good purity and fine particle size. After various understanding and field investigation, we are attracted by the professional technology and excellent process of Kolev Company, so we introduce advanced equipment and technology of our company and purchase the full set of limestone grinding production line of our company.

100,000 Tons Fly Ash Deep Processing Project

The company is Kazakhstan a large fly ash processing plant, set fly ash powder research and development, production and sales as one, the products are widely used in cement and concrete and related products. Now, due to the needs of market development, we need to add a high-quality fly ash deep processing production line again. After multiple understanding, comparison and repeated field investigation, we are attracted by the professional technology and sophisticated process of Kolev Company, and purchased the complete set of fly ash deep processing production line equipment of our company.

Gypsum Calcination Grinding Production Line Site

This company is a large local building materials Co., LTD., which is engaged in gypsum processing, production and sales. Due to the development needs of the company, we now want to add a gypsum processing line. Through the understanding and field investigation of our company, we are attracted by the professional technology and sophisticated technology of Kolev Company, so we purchased a full set of gypsum calcining modified grinding line of our company.

Limestone Grinding Powder Processing Project

The company is a local production, deep processing, sales in one of the lime production enterprises, the company's main calcium hydroxide, ash calcium powder, heavy calcium carbonate, light calcium carbonate, etc., with high-quality raw materials, the use of advanced equipment and production technology, the finished products are widely used in coating, building materials, sewage treatment and other fields. Due to the development needs, we need to add a limestone processing production line. After various communication, project analysis and field investigation, we were moved by the sincerity and professionalism of Kolev Company, and purchased the complete set of limestone grinding production line of our company.

Five tons per hour limestone grinding mill production line

The company is a local building materials company engaged in the production and sale of limestone mill. The company adopts scientific management. Due to the development needs of the company, we need to develop high quality limestone products with good purity and fine particle size. After various understanding and field investigation, we are attracted by the professional technology and excellent process of Kolev Company, so we introduce advanced equipment and technology of our company and purchase the full set of limestone grinding production line of our company.

Dolomite Ultrafine Grinding Project

The company is a local long - term engaged in ore grinding production and sales of building materials company. The company adopts scientific management, due to the development needs of the company, need to develop good purity, particle size fine and other high quality dolomite series products, through various understanding and field investigation, by the company's professional technology and sophisticated technology attracted, special introduction of my company's advanced equipment technology, purchased my company's full set of dolomite grinding production line.

limestone grinding production line put into operation
