Overflow Ball Mill

overflow ball mill has relatively simple structure--the advantage of no grate fence, high fineness in grinding, and less ball loading etc. Widely used in the second segment or place of comparably finer product.

Output size 30-400 mesh

Capacity 0.5-100 t/h

Power 18.5kw-1000kw

ISO 9001 CE Certified 20+ Years Global Service

Get Free Quote WhatsApp Chat

Applicable Material Product Features Working Principle Technical Parameter Company Profile Related Cases

Applicable Material

It is used to grind kinds of materials such as copper ore, gold ore, magnetite ore, quartz, lead zinc ore and other materials into fine powder 20-75micrometer.

Product Features

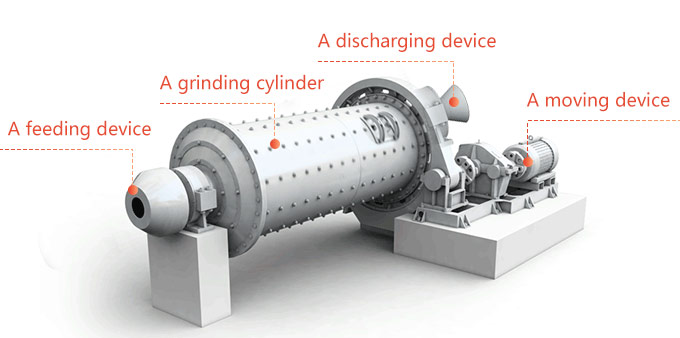

Working Principle

1.Overflow Ball Mill is a omitted by the outer gear. The materials are transferred to the grinding chamber through the quill shaft uniformly. There are ladder liner and ripple liner and different specifications of steel balls in the chamber.

2.The centrifugal force caused by rotation of barrel brings the steel balls to a certain height and impact and grind the materials. The ground materials are discharged through the discharging board thus the grinding process is finished.

Technical Parameter

Model	shell rotation speed (r/min)	Ball load (t)	Feeding size(mm)	Discharging size(mm)	Capacity (t/h)	Power (KW)	Weight (T)
900×1800	38	1.5	≤15	0.075 -0.89	0.65 -2	18.5	3.6
900×2100	38	1.3-1.4	≤20	0.075 -0.83	0.7-3.5	18.5	3.9
900×3000	38	2.7	≤20	0.075 -0.89	1.1-3.5	22	4.5
1200×2400	32	3.8	≤25	0.0745-0.6	1.5-4.8	30	11.5
1200×2800	32	3.3-3.5	≤25	0.0745-0.6	2-6	30	12.8
1200×3000	36	3.5	≤25	0.074-0.4	1.6-5	37	13
1200×4500	32	7	≤25	0.074 -0.4	1.6-5.8	45	13.8
1500×3000	27	8	≤25	0.074 -0.4	2-5	75	17
1500 ×3500	27	6.75-6.4	≤25	0.075 -0.4	3-7	75	17.5
1500×4500	27	14	≤25	0.074 -0.4	3.5-12	110	21
1500×5700	27	15	≤25	0.074 -0.4	3.5-8	115	24.7
1830×3000	24	18	≤25	0.074 -0.4	4-10	130	28
1800×3600	24	10.6-11.35	≤25	0.075 -0.4	5-22	130	30
1830*4500	25.4	15	<=25	0.074-0.4	4.5-12	155	32
1830×6400	24.1	21	≤25	0.074~0.4	6.5-15	210	34
1830×7000	24	25	≤25	0.074 -0.4	7.5-17	210	36
2100×3000	23.7	15	≤25	0.074-0.4	6.5-36	155	39
2100×3600	22	14-15.2	≤25	0.075 -0.4	15-36	370	42
2100×4500	23.7	24	≤25	0.074-0.4	8-43	245	43.8
2100×7000	23.7	26	≤25	0.074-0.4	8-48	280	56.6
2200×4500	21.5	27	≤25	0.074-0.4	9-45	280	45.5
2200×5500	21	30	≤25	0.074 -0.4	10-20	210	48.5
2200×6500	21	31	≤25	0.074 -0.4	14-26	380	52.8
2200*7000	21.7	35	<=25	0.074-0.4	15-28	380	54
2200×7500	21	33	≤25	0.074 -0.4	16-29	380	56
2400×3000	20.6	15.5-16.6	≤25	0.075 -0.4	22-24	245	59
2400×4500	21	30	≤25	0.074 -0.4	8.5-60	380	65
2700×3600	20.6	39	≤25	0.074 -0.4	12-70	400	91.3
2700×4000	20.7	40	≤25	0.074 -0.4	12-80	400	94
2700×4500	20.7	48	≤25	0.074 -0.4	12-90	430	102
3200×4500	18	65	≤25	0.075-0.4	30-90	800	137
