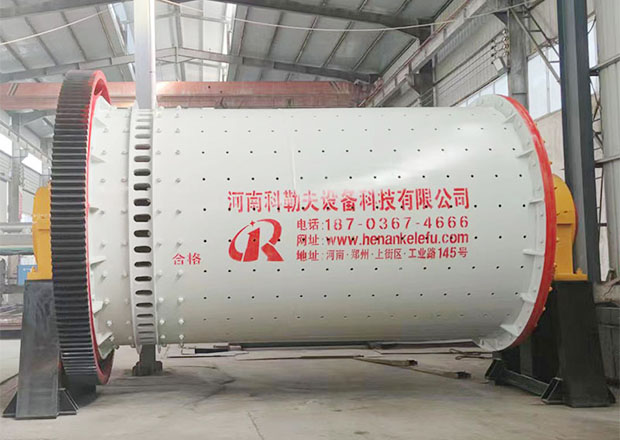

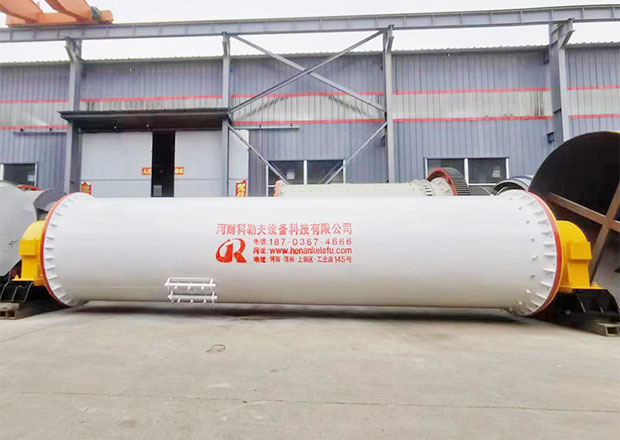

Ceramic Ball Mill

ceramic ball mill is mainly used for mixing, milling of the materials. It works with less energy but produces high fineness product. It has two types, wet mills and dry mills. The machine could use different lining board according to product requirement to satisfy different customers requirement. The milling fineness depends on the milling time.

Output size 350-2000 mesh

Capacity 0.5-20 t/h

Power 18.5kw-1000kw

ISO 9001 CE Certified 20+ Years Global Service

Get Free Quote WhatsApp Chat

Applicable Material Product Features Working Principle Technical Parameter Company Profile Related Cases

Applicable Material

The ceramic ball mill employs ceramic liners and grinding media to efficiently grind materials while ensuring high purity and eliminating metal contamination.It is used for fine grinding of feldspar, quartz, kaolin, clay, bentonite, dolomite, mica, talc, aluminum powder, fly ash, calcium carbonate, gold mining, rocks, ore, etc.

Product Features

Working Principle

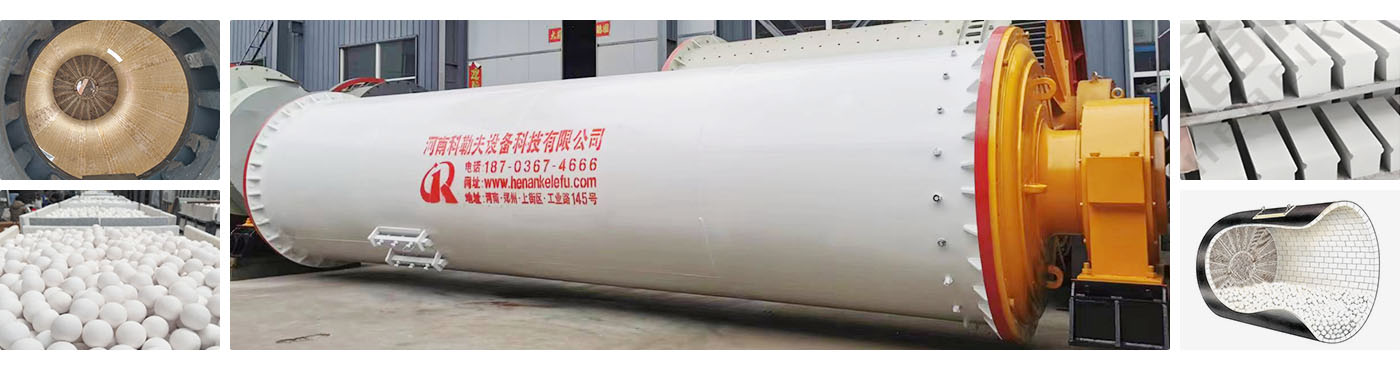

1.Ceramic ball mill is a omitted by the outer gear. The materials are transferred to the grinding chamber through the quill shaft uniformly. There are ladder liner and ripple liner and different specifications of steel balls in the chamber.

2.The centrifugal force caused by rotation of barrel brings the steel balls to a certain height and impact and grind the materials. The ground materials are discharged through the discharging board thus the grinding process is finished.

Technical Parameter

Model	Cylinder rotational speed (r/min)	Feeding size(mm)	Discharging size(um)	Capacity (t/h)	Power (KW)
1200×4500	32	≤20	150-5	1.5-2	55
1500×5700	27	≤20	150-5	2.5-5	130
1830x4500	26	≤25	150-5	3-6	185
1830x7000	26.5	≤25	150-5	4-8	210
2100x4500	26	≤25	150-5	5-10	210
2100x9000	24	≤25	150-5	5-12	280
2200x7000	23.5	≤25	150-5	6-12	380
2200x9000	23.5	≤25	150-5	6-15	380
2400x9000	21	≤25	150-5	8-20	475
2700x9000	21	≤25	150-5	9-20	475
2700x11000	20.5	≤25	150-5	10-25	560

Company Profile

Related Cases

Silica Grinding Production Line

The company is a local collection of ore mining, scientific research and development, production and manufacturing, technical services, technical consulting as one of the stone processing enterprises. Due to the need of business development, it is necessary to add a silica grinding production line. After the understanding and field investigation of our company, I was attracted by the professional technology and sophisticated process of Kolev Company, and purchased the complete set of silica grinding production line of our company.

Limestone Grinding Production Line

The company is a local building materials company engaged in the production and sale of limestone powder for a long time. The company adopts scientific management. Due to the development needs of the company, we need to develop high quality limestone products with good purity and fine particle size. After various understanding and field investigation, we are attracted by the professional technology and excellent process of Kolev Company, so we introduce advanced equipment and technology of our company and purchase the full set of limestone grinding production line of our company.

100,000 Tons Fly Ash Deep Processing Project

The company is Kazakhstan a large fly ash processing plant, set fly ash powder research and development, production and sales as one, the products are widely used in cement and concrete and related products. Now, due to the needs of market development, we need to add a high-quality fly ash deep processing production line again. After multiple understanding, comparison and repeated field investigation, we are attracted by the professional technology and sophisticated process of Kolev Company, and purchased the complete set of fly ash deep processing production line equipment of our company.

Gypsum Calcination Grinding Production Line Site

This company is a large local building materials Co., LTD., which is engaged in gypsum processing, production and sales. Due to the development needs of the company, we now want to add a gypsum processing line. Through the understanding and field investigation of our company, we are attracted by the professional technology and sophisticated technology of Kolev Company, so we purchased a full set of gypsum calcining modified grinding line of our company.

Limestone Grinding Powder Processing Project

The company is a local production, deep processing, sales in one of the lime production enterprises, the company's main calcium hydroxide, ash calcium powder, heavy calcium carbonate, light calcium carbonate, etc., with high-quality raw materials, the use of advanced equipment and production technology, the finished products are widely used in coating, building materials, sewage treatment and other fields. Due to the development needs, we need to add a limestone processing production line. After various communication, project analysis and field investigation, we were moved by the sincerity and professionalism of Kolev Company, and purchased the complete set of limestone grinding production line of our company.

Five tons per hour limestone grinding mill production line

The company is a local building materials company engaged in the production and sale of limestone mill. The company adopts scientific management. Due to the development needs of the company, we need to develop high quality limestone products with good purity and fine particle size. After various understanding and field investigation, we are attracted by the professional technology and excellent process of Kolev Company, so we introduce advanced equipment and technology of our company and purchase the full set of limestone grinding production line of our company.

Dolomite Ultrafine Grinding Project

The company is a local long - term engaged in ore grinding production and sales of building materials company. The company adopts scientific management, due to the development needs of the company, need to develop good purity, particle size fine and other high quality dolomite series products, through various understanding and field investigation, by the company's professional technology and sophisticated technology attracted, special introduction of my company's advanced equipment technology, purchased my company's full set of dolomite grinding production line.

limestone grinding production line put into operation
