Complete Cement Grinding Plant Solutions – Lower Investment, Faster Payback, Guaranteed Output Turnkey cement grinding station solutions from 100,000 to 2,000,000 TPY. Our integrated closed-circuit ball mill systems with high-efficiency separators deliver consistent cement quality, energy consumption below 30 kW·h/t, and project delivery in 12-18 months. Whether building a new grinding plant or upgrading an existing facility, we provide full EPC services from design to commissioning — trusted by cement producers in over 50 countries.

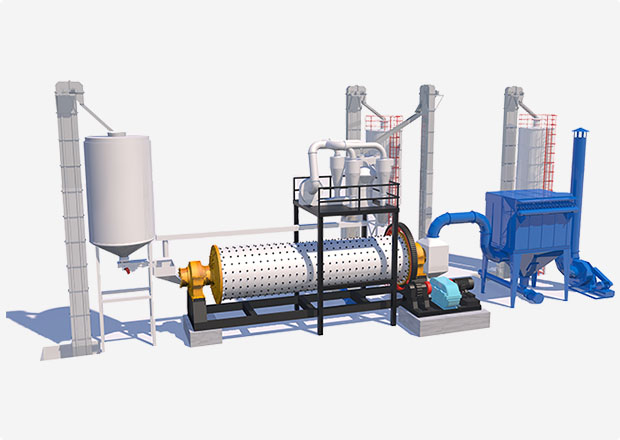

Our cement grinding station is a complete, integrated production facility engineered to produce high-quality cement from clinker, gypsum, and supplementary cementitious materials. We deliver the entire plant as a single-source EPC project.
System Scope of Supply
Core Process Equipment:

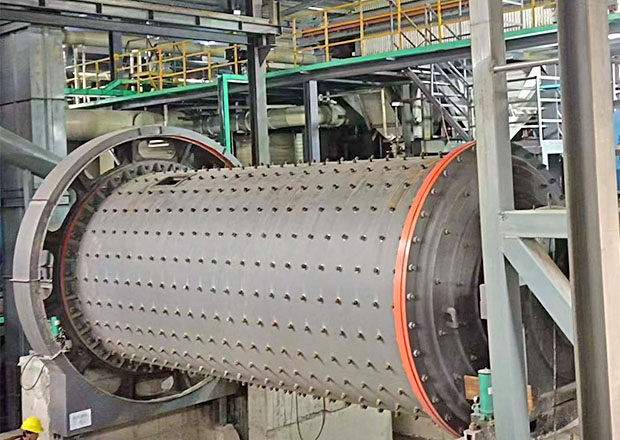

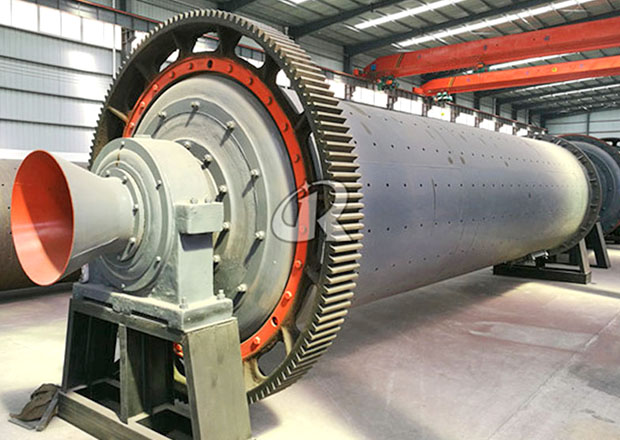

· Cement ball mill (Φ2.4×13m to Φ4.6×14m, open or closed circuit)
· High-efficiency dynamic separator (O-SEPA or cage-rotor type)
· Roller press with V-separator (optional, for pre-grinding and energy saving)
· Belt conveyor & bucket elevator system
· Automatic weighing and dosing system for clinker, gypsum, slag, fly ash, limestone
· Cement storage silos (bolted or concrete) with extraction and packing
· Baghouse dust collectors for entire plant (emission <10 mg/Nm³)
· Automatic rotary packer and truck/rail loading system
· Full PLC/DCS central control system with online quality monitoring
Cement Types to Produce:
· Ordinary Portland Cement (OPC, CEM I) — from clinker + gypsum + ≤5% limestone
· Portland Pozzolana Cement (PPC, CEM IV) — from clinker + fly ash/pozzolana (15-35%)
· Portland Slag Cement (PSC, CEM III) — from clinker + GGBFS (up to 70%)
· Limestone Cement (PLC, CEM II/A-L) — from clinker + limestone (up to 20%)
· Composite Cement (CEM II, CEM V) — from clinker + multiple SCMs
· Masonry cement, oil well cement, sulfate-resistant cement — specialty formulations
Raw Material Handling Capabilities:
· Cement clinker (bulk, nodules up to 25mm)
· Gypsum (natural, FGD/desulfurization)
· Granulated blast furnace slag (moisture up to 15%, pre-drying included)
· Fly ash (dry, from silo or bulk tanker)
· Limestone, pozzolana, and other additives
From Raw Materials to Bagged Cement: How Your Grinding Station Works
Raw Material Intake & Storage – Clinker, gypsum, and additives are received by truck or rail and stored in dedicated hoppers or covered storage. Moist slag and limestone are stockpiled under pre-blending beds for compositional consistency.
Precise Weighing & Feeding – Clinker and all additives are extracted by belt weighers with ±0.5% accuracy and conveyed to the mill feed chute. Gypsum dosage is precisely controlled to meet SO₃ target in the final cement.

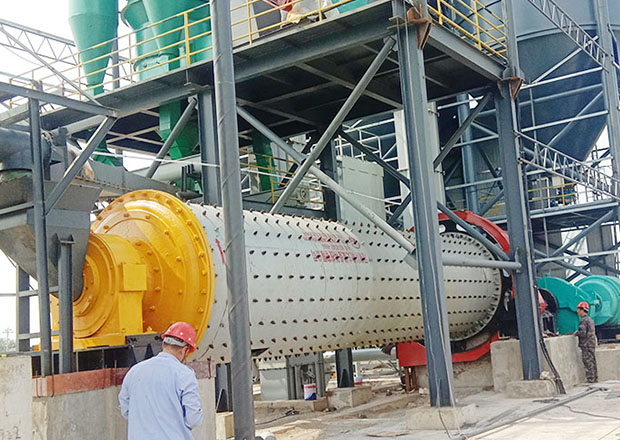

Grinding Circuit (Closed-Circuit) – The clinker-gypsum-additive mix is fed into the ball mill. After grinding, the material is elevated to the dynamic separator. Fines (finished cement) are sent to silos; coarse particles return to the mill. For larger plants, a roller press pre-grinds the feed before the ball mill, reducing total power by 25-35%.
Cement Cooling & Storage – Finished cement is cooled in a cement cooler to <80°C and conveyed to multi-compartment silos by air slides or bucket elevators. Silos are sized for 7-15 days of production buffer.
Packing & Dispatch – Cement is extracted from silos and routed to a rotary packer (for 50kg bags) and/or bulk loading spouts. A weighbridge and automated loading system enable efficient truck dispatch.
Standard Grinding Station Configurations (Closed-Circuit Ball Mill System)
| Station Capacity (TPY) | Ball Mill Model | System Power (kW) | Specific Power (kW·h/t, OPC) | Site Area (m², approx.) |
|---|---|---|---|---|
| 100,000 | Φ3.2×13m | ~2,000 | 30–32 | 8,000–12,000 |
| 200,000 | Φ3.5×13m | ~3,000 | 29–31 | 12,000–18,000 |
| 300,000 – 500,000 | Φ4.2×13m | ~5,000 | 28–30 | 20,000–30,000 |
| 800,000 – 1,000,000 | Φ4.6×14m | ~8,000 | 27–29 | 35,000–50,000 |
| 1,500,000 – 2,000,000 | 2×Φ4.2m or Φ4.6m+RP | Custom | 26–28 | 60,000+ |
*Roller press pre-grinding options available for >500,000 TPY to reduce specific power to <26 kW·h/t.*
Key Performance Indicators We Guarantee
| Parameter | Guaranteed Value |
|---|---|
| Cement output (TPH/TPY) | As per contract, ±5% |
| Blaine specific surface | Target ±15 m²/kg |
| 45µm sieve residue | Target ±1.5% |
| Specific power consumption (OPC) | ≤30 kW·h/t (closed-circuit) |
| Dust emission | <10 mg/Nm³ |
| Plant availability | >85% (annual) |
| Sound level at plant boundary | <85 dB(A) |
EPC Project Scope Options
We tailor the grinding station scope to your needs:
· Full EPC (Engineering-Procurement-Construction): Complete plant from raw material intake to cement dispatch, including civil, steel structure, mechanical, electrical, and automation.
· EP (Engineering-Procurement): Design plus supply of all equipment. You handle civil works and erection locally.
· Equipment Supply Only: Core grinding circuit equipment with technical advisory for installation and commissioning.
Tell us your target annual output, cement types, and preferred EPC scope. We will prepare a complete grinding station proposal with layout, flow diagram, equipment list, and firm price.
Proven Performance: Global Cement Grinding Station Projects
Case 1: 300,000 TPY Cement Grinding Station, Southeast Asia
· Scope: Full EPC (Clinker receiving to bulk loading)
· Configuration: Φ4.2×13m closed-circuit ball mill with O-SEPA separator
· Cement: OPC (CEM I 42.5) and PPC (fly ash addition)
· Result: Commissioned in 14 months. Specific power 29.5 kW·h/t OPC. Plant availability 92% in first year. Investment recovered in 3.5 years through energy savings and high-quality premium cement sales.
Case 2: 500,000 TPY Slag & OPC Dual-Line Grinding Station, Middle East
· Scope: Full EPC with roller press pre-grinding
· Configuration: Roller press + Φ4.2×13m ball mill, two grinding lines
· Cement: PSC with 60% GGBFS and OPC
· Result: Commissioned in 16 months. Slag cement specific power 27 kW·h/t. PSC quality certified to CEM III/A 42.5N. Now the preferred supplier for major infrastructure projects in the region.
Case 3: Plant Upgrade: Open Circuit to Closed Circuit, Africa
· Scope: Retrofit EPC (replaced open-circuit mill internal + added separator + automation)
· Original capacity: 150,000 TPY at 35 kW·h/t
· New capacity: 250,000 TPY at 29 kW·h/t
· Result: Output increased 67% with 17% less power per ton. Payback from energy savings alone: 2.8 years.
EPC Delivery & Performance Assurance
· Single-Source Responsibility: We are your single point of contact for the entire grinding station project. No splitting of responsibility between equipment supplier, civil contractor, and electrical subcontractor.
· Project Management & Scheduling: Dedicated project manager with a detailed CPM schedule, progress reports, and milestones linked to payments. Typical delivery milestones: engineering (2 months), equipment delivery (4-6 months), civil & erection (6-8 months), commissioning (1-2 months).
· Performance Test & Takeover: A 72-hour continuous performance test is conducted to verify cement output, Blaine fineness, and specific power consumption. The plant is handed over only after passing all acceptance criteria.
· Guarantee & After-Sales: 12-month defect liability period from plant handover. On-site operator training, three sets of manuals, and 24/7 remote technical support. Spare parts stocked in regional hubs for express delivery.
Ready to Build or Upgrade Your Cement Grinding Station?
Send an inquiry. You will receive:
A complete grinding station project proposal with layout, equipment list, and firm EPC price.
A detailed project schedule from contract to commissioning.
Your project information is protected under NDA.
