ISO 9001 Certified

Silica sand grinding equipment

Dispose of materials silica sand,Quartz ,Ore , Clay

Feeding Size 5mm

Output size 0.045-0.023mm

Capacity 1.5-25T/H

ISO 9001 CE Certified 20+ Years Global Service

Get Free Quote WhatsApp Chat

Introduction Product Features Working Principle Technical Parameter Related Cases

Introduction

Silica sand powder is commonly used in photovoltaic and glass industries. Due to its special properties, low iron impurities are required and ceramic ball mills are required.

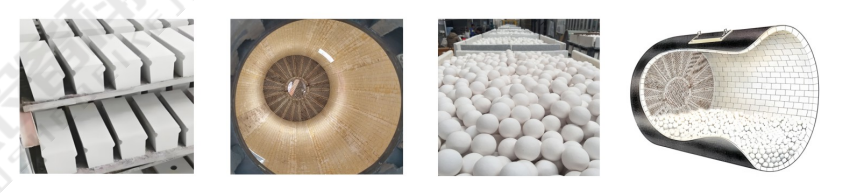

The ceramic ball mill produced by our company is a high-fine grinding machine. The material should be fed into the mill in a medium-fine state to achieve grinding efficiency. The interior adopts ceramic liners and ceramic balls, and the feed and discharge ends are made of stainless steel, which has excellent wear resistance and chemical stability and is not easy to contaminate materials. The ceramic ball mill is mainly used for mixing and grinding materials. The fineness of the product is uniform and energy-saving. It can be dry-milled or wet-milled. The ceramic ball mill can use different liner types according to production needs to meet different needs. The fineness of the grinding operation is controlled by the grinding time.

Product Features

Working Principle

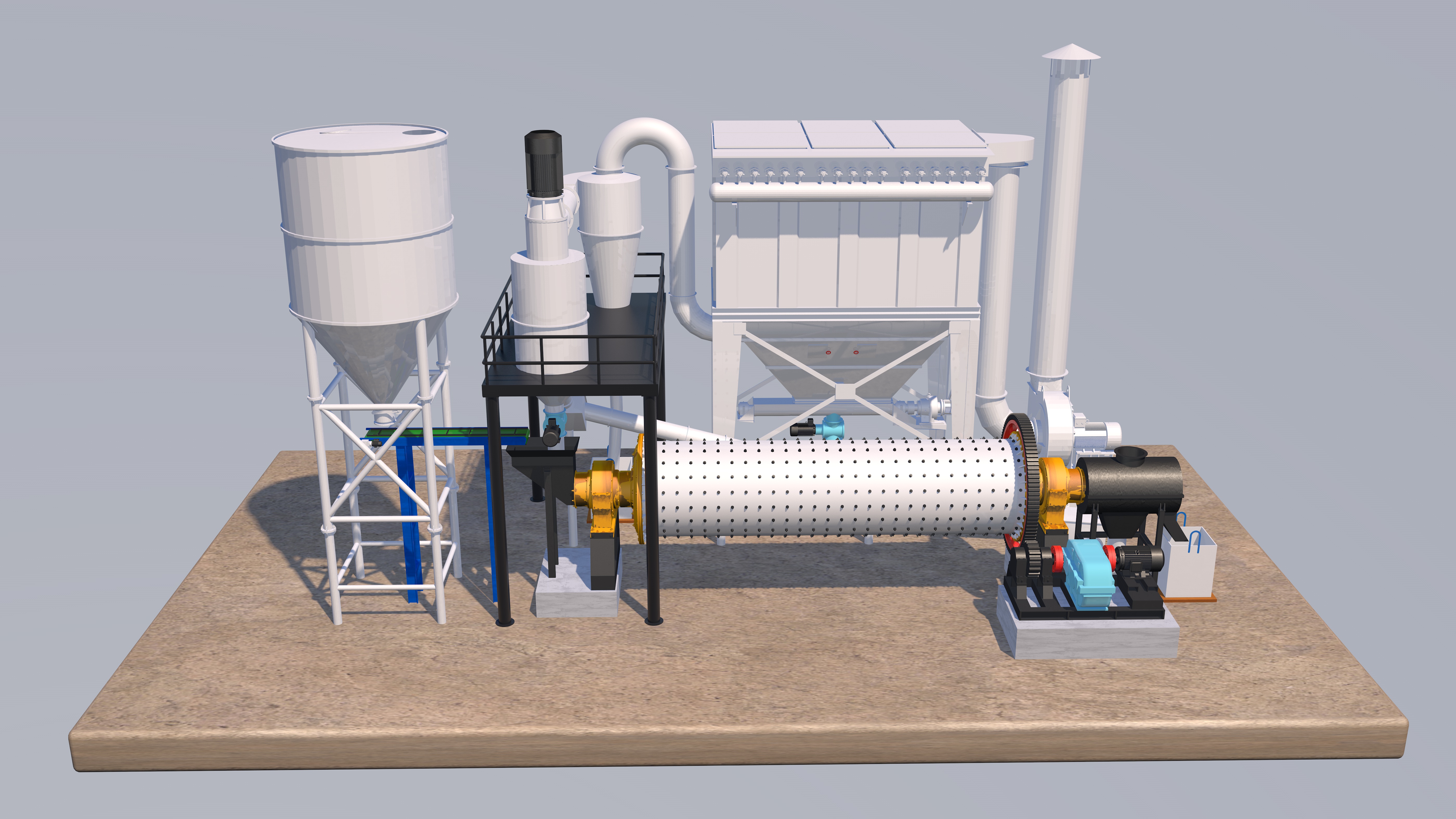

The silica sand ball mill is mainly composed of a grinding jar, a ceramic ball mill, a transmission mechanism and a control system. When the machine is started, the motor drives the transmission mechanism to rotate the grinding jar, causing the ceramic ball in the jar to rotate. During the rotation, the material is driven to the grinding area in the jar, and is continuously ground, mixed and dispersed under the friction and impact of the ceramic ball. The appropriate finished product is screened out by the powder selector, and the unqualified ones will continue to be ground. This grinding solution uses a closed-flow grinding device.

Technical Parameter

Model	Processing Capacity	Speed	Powder	Machine Weight
φ1200×4500	1.5-2.0	32	55	12.8
φ1500×5700	3.0-4.0	27	130	23.5
φ1830×4500	5.0-6.0	26	185	28.0
φ1830×7500	6.0-8.0	26.5	210	36
φ2100×4500	8.0-10	26	210	42
φ2100×9000	10-12	24	280	48
φ2200×7000	10-12	23.5	280	50
φ2200×9000	12-15	23.5	380	65
φ2400×9000	15-18	21	475	75
φ2700×4500	18-20	21	475	75
φ2700×9000	20-25	20.5	630	108

Related Cases

Silica Grinding Production Line

The company is a local collection of ore mining, scientific research and development, production and manufacturing, technical services, technical consulting as one of the stone processing enterprises. Due to the need of business development, it is necessary to add a silica grinding production line. After the understanding and field investigation of our company, I was attracted by the professional technology and sophisticated process of Kolev Company, and purchased the complete set of silica grinding production line of our company.

Limestone Grinding Production Line

The company is a local building materials company engaged in the production and sale of limestone powder for a long time. The company adopts scientific management. Due to the development needs of the company, we need to develop high quality limestone products with good purity and fine particle size. After various understanding and field investigation, we are attracted by the professional technology and excellent process of Kolev Company, so we introduce advanced equipment and technology of our company and purchase the full set of limestone grinding production line of our company.

100,000 Tons Fly Ash Deep Processing Project

The company is Kazakhstan a large fly ash processing plant, set fly ash powder research and development, production and sales as one, the products are widely used in cement and concrete and related products. Now, due to the needs of market development, we need to add a high-quality fly ash deep processing production line again. After multiple understanding, comparison and repeated field investigation, we are attracted by the professional technology and sophisticated process of Kolev Company, and purchased the complete set of fly ash deep processing production line equipment of our company.

Gypsum Calcination Grinding Production Line Site

This company is a large local building materials Co., LTD., which is engaged in gypsum processing, production and sales. Due to the development needs of the company, we now want to add a gypsum processing line. Through the understanding and field investigation of our company, we are attracted by the professional technology and sophisticated technology of Kolev Company, so we purchased a full set of gypsum calcining modified grinding line of our company.

Limestone Grinding Powder Processing Project

The company is a local production, deep processing, sales in one of the lime production enterprises, the company's main calcium hydroxide, ash calcium powder, heavy calcium carbonate, light calcium carbonate, etc., with high-quality raw materials, the use of advanced equipment and production technology, the finished products are widely used in coating, building materials, sewage treatment and other fields. Due to the development needs, we need to add a limestone processing production line. After various communication, project analysis and field investigation, we were moved by the sincerity and professionalism of Kolev Company, and purchased the complete set of limestone grinding production line of our company.

Five tons per hour limestone grinding mill production line

The company is a local building materials company engaged in the production and sale of limestone mill. The company adopts scientific management. Due to the development needs of the company, we need to develop high quality limestone products with good purity and fine particle size. After various understanding and field investigation, we are attracted by the professional technology and excellent process of Kolev Company, so we introduce advanced equipment and technology of our company and purchase the full set of limestone grinding production line of our company.

Dolomite Ultrafine Grinding Project

The company is a local long - term engaged in ore grinding production and sales of building materials company. The company adopts scientific management, due to the development needs of the company, need to develop good purity, particle size fine and other high quality dolomite series products, through various understanding and field investigation, by the company's professional technology and sophisticated technology attracted, special introduction of my company's advanced equipment technology, purchased my company's full set of dolomite grinding production line.

limestone grinding production line put into operation
