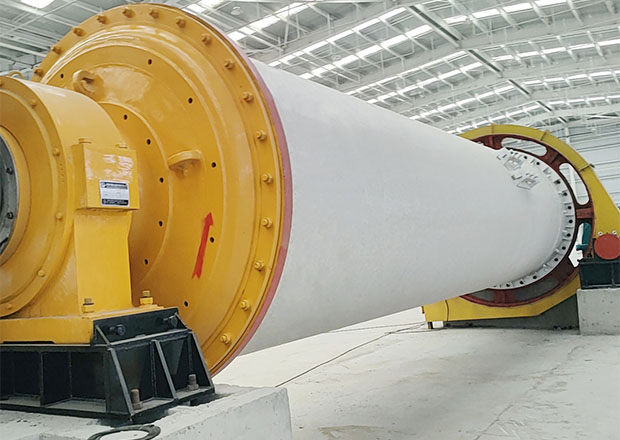

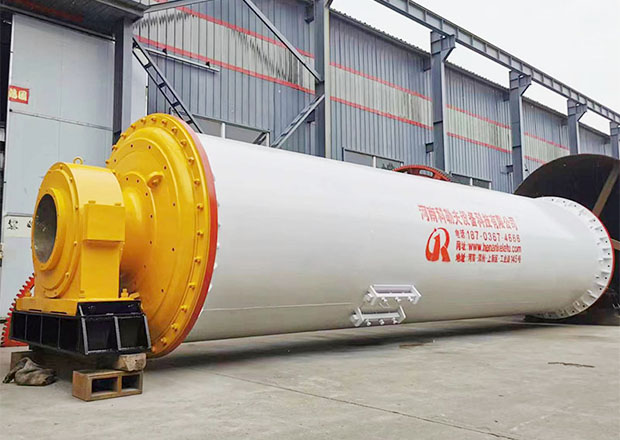

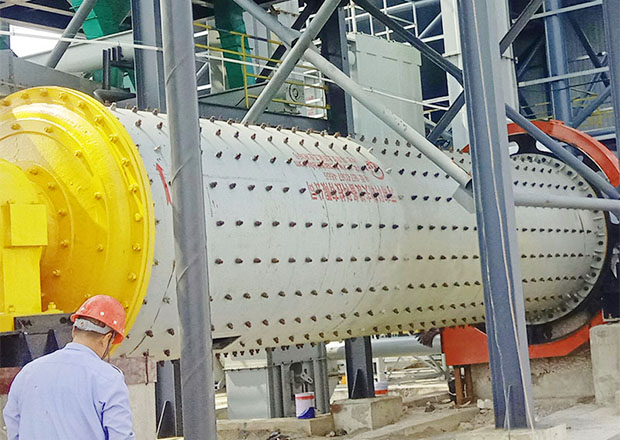

Cement Ball Mill

The cement ball mill is the key equipment for re-grinding cement clinker after pre-grinding by system ingredients. Widely used in cement clinker grinding plant station. Cement grinding is one of the important cement equipment.

Output size 30-400 mesh

Capacity 0.5-100 t/h

Power 18.5kw-1000kw

ISO 9001 CE Certified 20+ Years Global Service

Get Free Quote WhatsApp Chat

Applicable Material Product Features Process Flow Chart Gallery Technical Parameter Company Profile Related Cases

Applicable Material

The cement ball mill is a fundamental and critical piece of equipment in cement grinding plant unit, designed for grinding clinker, gypsum, and other additives (like slag or fly ash) to produce fine cement powder.

Grinding different types of cement clinker,such as Portland cement,Portland slag cement, Portland pozzolan cement, Portland fly ash cement, Special cement, Characteristic cement, General purpose cement， Slag cement， Oil well cement，White Portland cement，Pozzolanic cement，Masonry cement，Aluminate cement，Fast hardening Portland cement，Sulfate resistant Portland cement，and Portland expansion cement can be used for the dry grinding for all kinds of cement clinker and raw materials.

Product Features

Process Flow Chart

1.The materials that meet the grinding particle size are unloaded into the large silo by the loader. A weighing and metering feeding device (belt metering scale) is arranged under the silo. The device is controlled by a microcomputer and automatically adjusts the feeding amount according to the capacity input parameters.
2.In order to ensure that the mill meets the production standards and reduces the consumption of grinding bodies, a permanent magnetic iron remover is suspended on the feeding belt conveyor to remove metal (physical iron) impurities in the raw materials.
3.This set of grinding scheme adopts a closed-flow (circular flow grinding) grinding process, that is, the mixed powder discharged from the ball mill first enters the powder selection machine for air selection, the fine ash directly enters the finished product warehouse, and the coarse ash returns to the ball mill for secondary grinding, thus forming a closed-loop grinding system.
4.Although the investment in the circle flow grinding system is larger, the fineness (particle size ratio) of the product is uniform, the quality is stable, and the output is much higher than that of the same model ball mill.

Gallery

Technical Parameter

Specification(m)D×L	Rotary speed(r/min)	Feeding sie(mm)	Capacity	Ball loading	Main motor	Power(kw)	Motor speed(r.p.m)	Main reducer	Reducing ratio	Weight
Φ2.2×11	22.2	≤25	15～17	50	JR1512-8	570	740	ZD80	5	83
Φ2.4×8	20.91	≤25	14～18	39.5-42	JR1512-8	570	740	ZD80	5	76.4
Φ2.4×9	20.91	≤25	23~25 C	50	JR1512-8	570	740	ZD80	5	81
Φ2.4×10	20.91	≤25	O 16~18	50	TR1512-8	630	740	ZD80	5	92.4
Φ2.4×11	21	≤25	O 17~19 C 20~22	60~62	YR710-8/1180	710	740	JDX630	5.6	105
Φ2.4×12	21	≤25	O 18~20 C 22~24	63~65	YR800-8/1180	800	740	MBY710	6.3	110
Φ2.4×13	21	≤25	O 21~22 C 24~26	66~68	YR800-8/1180	800	740	MBY710	6.3	117
Φ2.6×10	20.6	≤25	21~24	64	YR800-8/1180	800	740	JDX710	6.3	133
Φ2.6×11	20.6	≤25	21~28	69	YR800-8/1180	800	740	JDX710	6.3	140
Φ2.6×13	20.6	≤25	28~31	80	YR1000-8/1180	1000	740	JDX800	6.3	151
Φ3.0×9	19.3	≤25	35~40(C)	80~83	YR1000-8/1180	1000	740	MBY800	7.1	137
Φ3×11	18.92	≤25	44~47(C)	95~100	YR1250-8/1430	1250	740	JDX900	7.1	159
Φ3×12	18.92	≤25	48~52(C)	103	YR1250-8/1430	1250	740	JDX900	7.1	164
Φ3×13	18.92	≤25	39~45(C)	110~116	YR1400-8/1430	1400	740	JDX900	7.1	183
Φ3.2×11	18.3	≤25	45~48(C)	110~112	YR1400-8/1430	1400	740	JDX900	7.1	195.5
Φ3.2×13	18.7	≤25	45~50(O)	125	YR1600-8/1430	1600	740	JDX1000	7.15	213
Φ3.4×11	18	≤25	45~55(C)	115	YR1600-8/1430	1600	740	JDX1000	7.15	201
Φ3.5×13 Central drive	17	≤25	50~55	150	YR2000-8/1730	2000	740	JS130-A-F1		223
Φ3.5×13 Edge drive	17.5	≤25	50~60	150	YR2000-8/1730	2000	740	JDX1000	6.3	240.5
Φ3.8×13 Bearing	16.3	≤25	65~70	185	YR2500-8/1730	2500	740	JS130-C-F1		240
Φ3.8×13 Sliding shoe	16.3	≤25	65~70	185	YR2500-8/1730	2500	740	JS130-C-F1		220
Φ4×13	16.3	≤25	78~80	191	YRKK900	2800	745	JS140-A		220
Φ4.2×11 Bearing	15.6	≤25	120~140	190	YR2800-8/1730	2800	740	JS140-A-F1D		245
Φ4.2×13 Bearing	15.6	≤25	140~155	225	YRKK1000-8	3350	740	JS150-A		260
Φ4.2×13 Central shoe	15.6	≤25	140~155	225	YRKK1000-8	3550	740	JS150-A		280
Φ4.2×13 Sliding shoe	15.6	≤25	140~155	225	YRKK1000-8	3550	740	JS150-B		260
Φ4.6×13.5 Welding shoe	14.5	≤25	140	280	YRKK1000-6	4500	995			365
Φ4.6×14	14.5	≤25	145	285	YR1000-6	4500	995			372
Φ5.0×15	14	≤25	160~165	350	YRKK1000-8	6000	740			420
