Complete Turnkey Calcium Carbonate Powder Production Lines – From Limestone to Ultra-Fine GCC Specialized engineering solutions for calcium carbonate grinding plants from 30,000 to 500,000 TPY. Our integrated closed-circuit ball mill or vertical roller mill systems with high-efficiency air classifiers deliver D97 from 45 µm down to 5 µm, with specific energy consumption starting as low as 35 kW·h/t for D97=10µm GCC. Whether you are building a new GCC plant or upgrading an existing facility, we provide full EPC services from raw material testing to packaged powder dispatch — trusted by carbonate filler and coating pigment producers worldwide.
Our calcium carbonate grinding plant is a complete, integrated production facility engineered to produce high-quality GCC powder from limestone, marble, or calcite. We deliver the entire plant as a single-source EPC project.
System Scope of Supply
Core Process Equipment:
· Jaw crusher & hammer crusher for primary reduction (≤25 mm feed into mill)

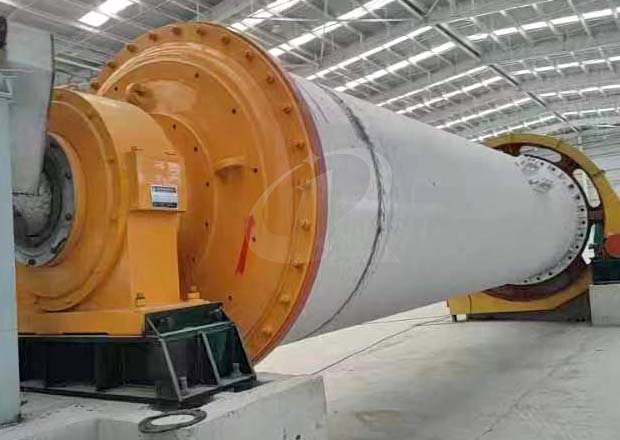

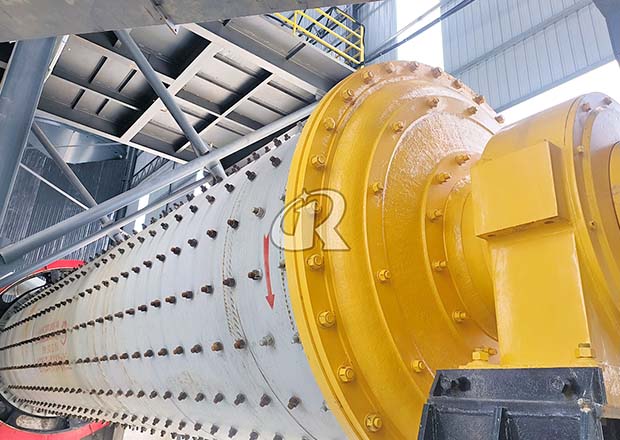

· Calcium carbonate ball mill or vertical roller mill (closed circuit, ceramic-lined)
· High-efficiency turbo or cage-rotor air classifier (multiple stages for ultra-fine grades)
· High-gradient magnetic separator (HGMS) for iron removal
· Surface modification machine (stirred mill or continuous coater with stearic acid dosing, optional)
· Automatic weighing, batching and bag packing system (25/50 kg bags) plus bulk loading
· Integrated baghouse dust collectors for entire plant (emission <10 mg/Nm³)
· Full PLC/DCS central control system with online particle size & brightness monitoring
Product Grades We Can Produce:
· Coarse filler: D97=45-75 µm, for asphalt, carpet backing, putty
· Medium filler: D97=15-25 µm, for paper, PVC pipes, rubber
· Fine filler: D97=5-10 µm, for paints, coatings, adhesives, sealants
· Ultra-fine coating pigment: D97=2-5 µm, for high-gloss paper coating, masterbatch
· Surface-treated GCC (with stearic acid or titanate coupling): for plastic films, breathable film
Raw Material Flexibility:
· Limestone / Calcite / Marble (CaCO₃ >96%, whiteness >90%)
· Chalk (high purity, soft, for specialized fine powders)
· Dolomite (CaMg(CO₃)₂) for glass and filler applications
Not sure about your optimal plant configuration? Tell us your raw material hardness, target product fineness (D97), and annual capacity. Our process engineers will design a complete solution from quarry stone to bagged powder.
From Quarry Stone to Ultra-Fine Calcium Carbonate Powder: How Your Plant Works
Raw Stone Crushing & Storage – Raw limestone or marble (≤600mm) is crushed in a jaw crusher to <50mm and then a hammer crusher to ≤10mm. The granulated material is stored in silos or covered stockpile for buffer.
Precise Dosing & Mill Feeding – The crushed stone is fed into the grinding mill via a weighing belt and screw conveyor. The feed rate is automatically controlled to maintain the optimal mill load and classifier current.
Closed-Circuit Grinding & Classification – The ball mill (with ceramic lining) grinds the material to a fine powder. The mill discharge is air-conveyed to the turbo classifier. On-spec powder passes through; coarse tailings return to the mill for re-grinding. A multi-stage classification system is used for D97 <5 µm products.
Iron Removal & Brightness Protection – Following the classifier, the fine powder passes through a high-gradient magnetic separator to remove any trace iron from the raw material, ensuring final brightness remains high.
Surface Treatment (Optional) – For coated GCC, the fine powder enters a continuous surface modifier where molten stearic acid is atomized and mixed intensively, producing hydrophobic, dispersible powder for plastics.
Packaging & Dispatch – Finished GCC powder is stored in product silos, then extracted and packed into 25/50 kg bags via automatic packers, or loaded in bulk into trucks. A central PLC controls the entire process from stone feed to final product.
Standard GCC Grinding Plant Configurations (Ball Mill + Air Classifier System)
| Plant Capacity (TPY) | Main Mill Model | Classifier Type | Product D97 (µm) | Specific Power (kW·h/t, D97=10µm) | Site Area (m², approx.) |
|---|---|---|---|---|---|
| 30,000 | Φ2.2×7m Ball Mill | Single Turbo | 10–45 | 45–50 | 5,000–8,000 |
| 60,000 | Φ2.4×8m Ball Mill | Single Turbo | 5–45 | 40–45 | 8,000–12,000 |
| 100,000 | Φ2.4×13m Ball Mill | Multi-stage Turbo | 5–45 | 35–40 | 12,000–18,000 |
| 200,000 | 2×Φ2.4m or 1×Φ3.2m | Multi-stage Turbo | 2–45 | 32–38 | 20,000–30,000 |
| 500,000 | VRM or 2×Φ4.2m Ball Mill | Multi-stage Turbo | 5–45 | 28–35 | 40,000+ |
*Note: Specific power depends on raw material hardness and target fineness. Plants producing D97 <5 µm will require multi-stage classification and surface treatment options, and energy consumption will be higher.*
Key Performance Guarantees
| Parameter | Guaranteed Value |
|---|---|
| Product D97 top cut | Target ±1 µm |
| Product ISO brightness (after HGMS) | ≥95% |
| Iron content (Fe₂O₃) | <0.02% (200 ppm) |
| Dust emission | <10 mg/Nm³ |
| Plant availability | >85% (annual) |
| Specific power consumption | As per contractual test guarantee |
EPC Project Scope Options:
· Full EPC (Turnkey): Complete plant from raw stone crushing to bagged/bulk dispatch, including civil, steel structure, ceramic lining, electrical, automation, and operator training.
· EP (Engineering & Equipment Supply): Design plus supply of all core equipment. Local civil works and erection by others, with our supervision.
· Standalone Grinding & Classifying System: Supply of the ball mill, classifier, and dust collection system only.
Tell us your target annual output, feed material specifications, and required product fineness (D97). We will prepare a complete calcium carbonate grinding plant proposal with flow sheet, equipment list, and firm price.
Proven Performance: Global Calcium Carbonate Plant Projects
Case 1: 100,000 TPY GCC Grinding Plant, Southeast Asia
· Scope: Full EPC (Quarry stone receiving to bagged powder)
· Configuration: Φ2.4×13m closed-circuit ball mill + single turbo classifier + stearic acid coating
· Product: Coated & uncoated GCC, D97=10µm for PVC pipes and masterbatch
· Result: Commissioned in 12 months. Uncoated powder specific power 38 kW·h/t, ISO brightness 96%. Coated product activation rate >98%. The plant became the local market leader in PVC filler within 6 months.
Case 2: 60,000 TPY Ultra-Fine Coating Grade GCC Line, Africa
· Scope: Full EPC
· Configuration: Φ2.4×8m ceramic-lined ball mill + two-stage turbo classifier + HGMS
· Product: Paper coating GCC, D97 <5 µm, ISO brightness 97%, Fe₂O₃ <0.015%
· Result: Successfully replaced imported European GCC. Specific power 55 kW·h/t for D97=5 µm. Customer won a long-term contract with a major paper mill.
Case 3: Plant Retrofit: From 15µm to 5µm Product, South Asia
· Scope: Retrofit (replaced old separator with multi-stage classifier, added ceramic lining & HGMS)
· Original product: D97=15 µm filler for putty; Output: 3 TPH
· New product: D97=5 µm coating pigment for paints; Output: 4 TPH
· Result: Product upgrade doubled the selling price. Payback period on retrofit: 1.5 years.
Ready to Build Your World-Class Calcium Carbonate Plant?
Send an inquiry. You will receive:
A complete GCC plant proposal tailored to your stone type, capacity, and target D97.
A process flow sheet, equipment list, and firm EPC price.
A detailed project schedule from design to commissioning.
Optional: Free grinding test on your limestone sample with full particle size and whiteness analysis.
Your raw material details and business plan are held in strict confidence.
