YGM Raymond Mill

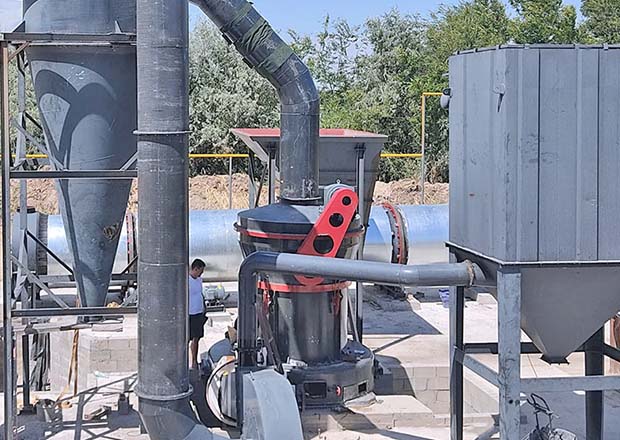

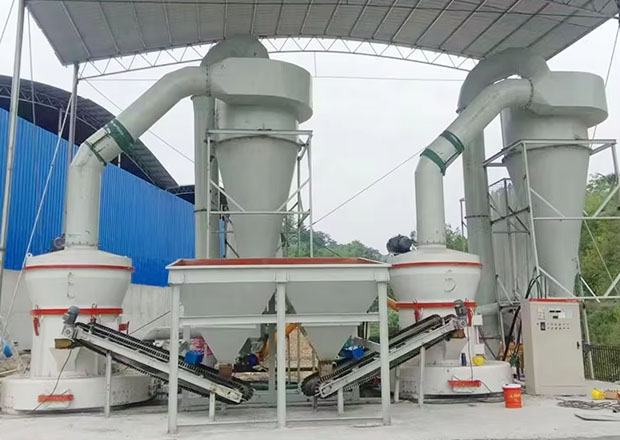

YGM Raymond Mill (also known as High Pressure Grinding Mill) is a new-generation grinding equipment upgraded from the traditional Raymond mill. It is widely used for processing non-flammable, non-explosive materials with Mohs hardness ≤9.3 and moisture ≤6%, including limestone, calcite, marble, barite, gypsum, talc, kaolin, bentonite, dolomite, phosphate rock, manganese ore, feldspar, and more. With a high-pressure spring device installed on the roller assembly, the YGM series increases grinding force by 30%-50% compared to traditional Raymond mills, significantly improving grinding efficiency and achieving finer finished product fineness (80-600 mesh, up to 800 mesh for some materials).

Hot Sale Model YGM 65, YGM75, YGM 95, YGM130

Capacity 1-40t/h

Input size ≤25mm

Output size 80-600Mesh Adjustable

ISO 9001 CE Certified 20+ Years Global Service

Get Free Quote WhatsApp Chat

Product Introduction Product Features Working Principle Technical Parameter Why Choose Us Company Profile Related Cases

Product Introduction

YGM Raymond Mill(High Pressure Grinding Mill) | 30%-50% Higher Grinding Force-The Ideal Choice for Large-Scale Powder Processing of Medium-Hard Non-Metallic Minerals

Compared to traditional Raymond mills, the YGM High Pressure Mill offers higher grinding force, finer finished product, higher output, and lower energy consumption, making it especially suitable for processing medium-hard materials with Mohs hardness 5-9.3. The equipment is equipped with a PLC control system for one-touch start/stop, greatly enhancing automation.

We offer custom solutions ranging from single units to complete production lines, with products exported to over 50 countries and regions including the US, Russia, India, Vietnam, Indonesia, Egypt, and Brazil.

The YGM Raymond Mill is widely used for the following materials and industries:

Material Type	Typical Materials	Hardness	Fineness	Industry Application
Carbonates	Limestone, calcite, marble, dolomite	≤5	100-600 mesh	Building materials, paints, plastics, feed additives
Sulfates	Barite, gypsum, anhydrite	≤4	200-400 mesh	Oil drilling weighting agent, building materials, molds
Silicates	Talc, kaolin, bentonite, mica	≤4	200-600 mesh	Paper, ceramics, rubber, paints, cosmetics
Phosphates	Phosphate rock	≤5	100-200 mesh	Phosphate fertilizer production
Oxides	Manganese ore, iron ore, chrome ore, molybdenum ore	≤7	100-200 mesh	Metallurgy, mineral processing
Other Non-Metallic	Silicon carbide, corundum, zircon sand	≤9.3	200-400 mesh	Refractories, abrasives

Product Features

Working Principle

The working principle of the YGM High Pressure Raymond Mill is based on the combined effect of centrifugal force and high-pressure springs:

1. Feeding
Material is crushed to ≤30mm, lifted by a bucket elevator into a raw material silo, and uniformly fed into the grinding chamber by an electromagnetic vibrating feeder.

2. High-Pressure Grinding
Under the dual action of centrifugal force and high-pressure springs, the grinding rollers press against the grinding ring with significantly higher force than traditional Raymond mills. Material scooped by shovel blades is thrown between the rollers and the ring, where it is crushed and ground into fine powder.

3. Classification
The ground powder is carried by airflow to the high-efficiency classifier. By adjusting the classifier rotor speed, final fineness is controlled. Qualified powder passes to the collection system, while coarse powder returns for regrinding in a closed circuit.

4. Collection & Dust Removal
Qualified fine powder enters a pulse baghouse filter, where it is collected by filter bags and conveyed to the finished product silo. The entire system operates under negative pressure for dust-free operation. The PLC control system monitors equipment status in real time for automated operation.

Technical Parameter

Model	Roller No.	Roller Size(mm)	Grind Ring Inner Dia. Height & Length(mm)	Max feed size/mm	Output Size	Power/KW	Capacity/Tph	Overall Dimension/mm
YGM65	3	210×150	650×150	≤ 15	80-600 mesh	15	0.4-1.8	4100×3300×4500
YGM75	3	260×150	780×150	≤ 15		18.5	1-3	4300×3500×5100
YGM85	3	270×150	830×150	≤ 20		22	1.2-4	5300×4100×5200
YGM95	4	310×190	950×190	≤ 25		45	2.1-6.5	7100×5900×7900
YGM130	5	410×230	1280×230	≤ 30		90	2.5-9.5	7900×8000×9700
YGM160	6	450×300	1600×300	≤ 35		132	8.5-22	12550×5700×8355
YGM190	6	500×330	1900×330	≤ 40		250	18-36	11200x8530x9685

Why Choose Us

High-Pressure Grinding, Significant Benefits: The high-pressure spring device increases grinding force by 30%-50%, reducing energy consumption per unit output and providing a short return on investment period.
Higher Output, Finer Powder: Output increased by 15%-30% compared to traditional Raymond mills, with finished fineness reaching 600 mesh (800 mesh for some materials), meeting high-value product requirements.
Medium-Hard Material Processing Capability: Capable of processing materials with Mohs hardness ≤9.3, including silicon carbide, corundum, zircon sand, broadening application range.
Intelligent Control, Easy Operation: Standard PLC control system with automatic fault alarms enables unattended continuous production, reducing labor costs.
Wear-Resistant & Durable, Longer Service Life: Critical components made of high-manganese or Ni-hard alloy, service life 10,000-15,000 hours, reducing maintenance costs.
Environmental Compliance, Clean Production: Fully sealed negative pressure operation + high-efficiency pulse dust collection meets international environmental standards, ensuring a clean working environment.
Global Service: Exported to over 50 countries worldwide, providing overseas installation, commissioning, operation training, and long-term spare parts support.
Choose the YGM High Pressure Raymond Mill to improve your powder processing efficiency and expand into medium-hard material processing markets! Contact us today for professional selection advice and a customized solution.
Get Your Customized Solution:
Request a Quote → Tell us your capacity requirement, material type, and target fineness, and we will respond within 24 hoursSchedule a Technical Discussion → Speak one-on-one with our grinding engineer

Company Profile

Related Cases

Silica Grinding Production Line

The company is a local collection of ore mining, scientific research and development, production and manufacturing, technical services, technical consulting as one of the stone processing enterprises. Due to the need of business development, it is necessary to add a silica grinding production line. After the understanding and field investigation of our company, I was attracted by the professional technology and sophisticated process of Kolev Company, and purchased the complete set of silica grinding production line of our company.

Limestone Grinding Production Line

The company is a local building materials company engaged in the production and sale of limestone powder for a long time. The company adopts scientific management. Due to the development needs of the company, we need to develop high quality limestone products with good purity and fine particle size. After various understanding and field investigation, we are attracted by the professional technology and excellent process of Kolev Company, so we introduce advanced equipment and technology of our company and purchase the full set of limestone grinding production line of our company.

100,000 Tons Fly Ash Deep Processing Project

The company is Kazakhstan a large fly ash processing plant, set fly ash powder research and development, production and sales as one, the products are widely used in cement and concrete and related products. Now, due to the needs of market development, we need to add a high-quality fly ash deep processing production line again. After multiple understanding, comparison and repeated field investigation, we are attracted by the professional technology and sophisticated process of Kolev Company, and purchased the complete set of fly ash deep processing production line equipment of our company.

Gypsum Calcination Grinding Production Line Site

This company is a large local building materials Co., LTD., which is engaged in gypsum processing, production and sales. Due to the development needs of the company, we now want to add a gypsum processing line. Through the understanding and field investigation of our company, we are attracted by the professional technology and sophisticated technology of Kolev Company, so we purchased a full set of gypsum calcining modified grinding line of our company.

Limestone Grinding Powder Processing Project

The company is a local production, deep processing, sales in one of the lime production enterprises, the company's main calcium hydroxide, ash calcium powder, heavy calcium carbonate, light calcium carbonate, etc., with high-quality raw materials, the use of advanced equipment and production technology, the finished products are widely used in coating, building materials, sewage treatment and other fields. Due to the development needs, we need to add a limestone processing production line. After various communication, project analysis and field investigation, we were moved by the sincerity and professionalism of Kolev Company, and purchased the complete set of limestone grinding production line of our company.

Five tons per hour limestone grinding mill production line

The company is a local building materials company engaged in the production and sale of limestone mill. The company adopts scientific management. Due to the development needs of the company, we need to develop high quality limestone products with good purity and fine particle size. After various understanding and field investigation, we are attracted by the professional technology and excellent process of Kolev Company, so we introduce advanced equipment and technology of our company and purchase the full set of limestone grinding production line of our company.

Dolomite Ultrafine Grinding Project

The company is a local long - term engaged in ore grinding production and sales of building materials company. The company adopts scientific management, due to the development needs of the company, need to develop good purity, particle size fine and other high quality dolomite series products, through various understanding and field investigation, by the company's professional technology and sophisticated technology attracted, special introduction of my company's advanced equipment technology, purchased my company's full set of dolomite grinding production line.
