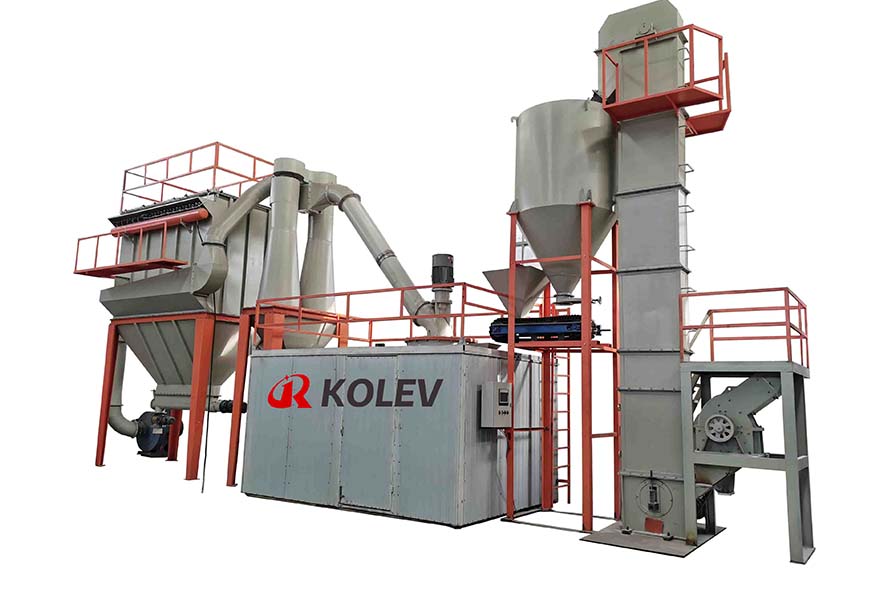

Three Ring Medium Speed Micro Grinding Mill is a device that grinding solid materials into powder by grinding, Such comminution is an important unit operation in many processes. It is usually used in Metallurgy, building materials, chemical and mine industries.
Three Ring Medium Speed Micro Grinding Mill is suitable for the super fine grinding of all kinds of crisp materials whose Moh’s hardness is below 7, such as calcium carbonate, barite, dolomite, calcite, limestone, kaolin, bentonite, marble, gypsum, quartz, feldspar, clay, talc, fluorite, white mud, mica, refractory material, glass.

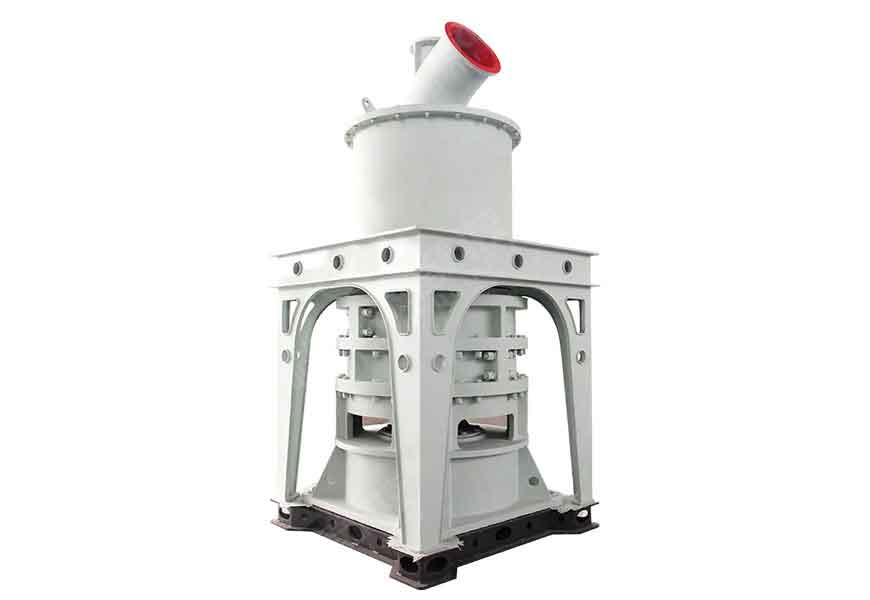

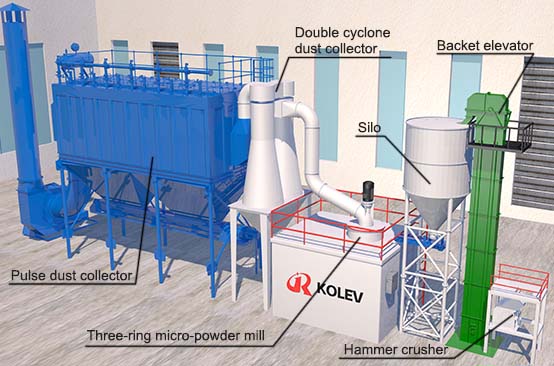

1.The motor of Three Ring Medium Speed Micro Grinding Mill drives the spindle and the turntable of each layer to rotate through the reducer, and the turntable drives dozens of ring rollers to roll and rotate in the raceway of the grinding ring through the pin.
2.The bulk material is broken into small particles by the crusher and sent to the storage bin by the bucket elevator. The screw feeder evenly sends the material to the middle of the upper rotary table.
3.The material is scattered to the periphery of the circle under the action of centrifugal force, and falls into the raceway of the grinding ring by the ring roller punching, rolling, grinding and crushing. The suction effect of the high pressure centrifugal fan will draw the external air into the machine, and the coarse powder after the third layer of grinding will be brought into the separator.
4.The snail flow generated by the rotating worm gear in the classifier makes the coarse particle material fall back to the re-grinding, and the fine powder enters double cyclone dust collector with the air flow and is discharged by the discharge valve at its lower part, which is the finished product.
5.The air flow with a small amount of fine dust is purified by the pulse dust collector and discharged from dischagrge hole.
| Model | mean diameter（mm） | Number of loops（ pcs ） | Feed size（mm） | Size range of finished product（mesh） | Finished product output（t/h） | boundary dimension（L*W*H）（mm） | main motor power（KW） | Power of separator（KW） |
| KLM800 | 800 | 3 | ≤10 | 150-3000 | 0.5-6 | 8605*4139x6050 | 75 | 15 |
| KLM800B | 800 | 3 | ≤10 | 150-3000 | 0.5-6 | 10454*3393*6626 | 75 | 5.5*3 |
| KLM1000 | 1000 | 4 | ≤15 | 150-3000 | 1.2-10.5 | 14507*3633*7562 | 132 | 22 |
| KLM1000B | 1000 | 4 | ≤15 | 150-3000 | 1.2-11.5 | 14362*4200*7562 | 132 | 5.5*3 |
| KLM1250 | 1250 | 4 | ≤20 | 150-2000 | 2.5-20.5 | 19261*4406*8591 | 185 | 37 |
| KLM1250B | 1250 | 4 | ≤20 | 150-3000 | 2.5-20 | 25067*5414*9007 | 185 | 5.5*4 |
| The device parameters are based on actual devices | Only main engine and dust collector system|Other options | |||||||
