Superfine Vertical Mill Equipment

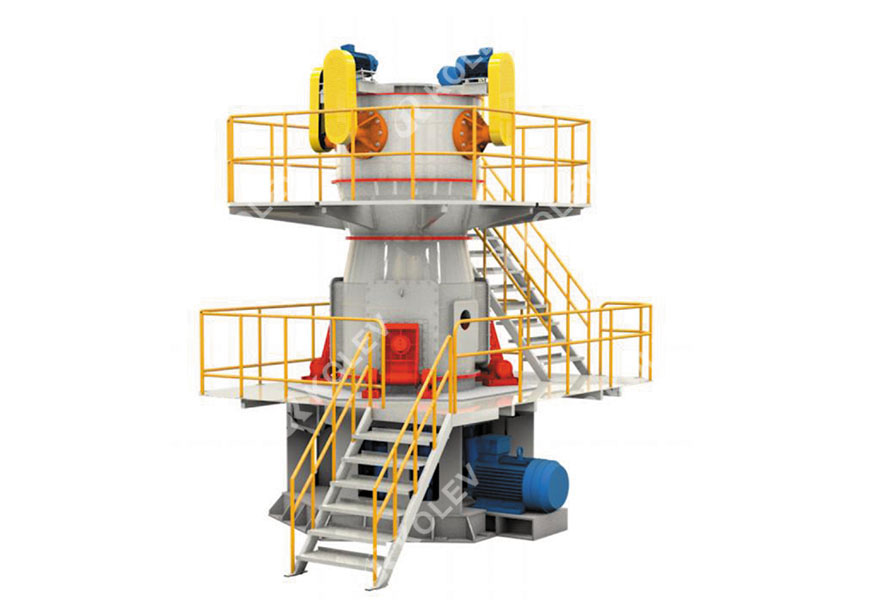

KLM vertical ultrafine grinding machine is a new generation of ultrafine grinding machine developed by our company on the basis of traditional vertical grinding based on domestic and foreign technology. The grinding machine can separate ultrafine materials over 800 mesh and grade them into two different fineness products.

Applicable materials Calcium carbonate ultrafine powder, coal, limestone, quartzite, barite, calcite, kaolin, gypsum, pyrophyllite, petroleum coke, etc.

Output size 200-2500Mesh

ISO 9001 CE Certified 20+ Years Global Service

Get Free Quote WhatsApp Chat

Applicable Material Product Features Working Principle Technical Parameter Company Profile Related Cases

Applicable Material

The KLM series ultrafine vertical grinding mill can be widely used in the chemical, metallurgical, non-metallic mineral, new energy negative electrode materials, papermaking, nanomaterials, battery positive electrode materials, PVC additives and other industries. It is mainly used to grind calcite, limestone, marble, calcium carbonate, talc, artificial granite, barite, dolomite, mica, kaolin, bentonite, pyrophyllite, graphite, petroleum coke and other minerals with a Mohs hardness of less than 7 and a water content of less than 6%. It can achieve large-scale ultrafine grinding processing. Its fineness adjustment range is wide, and the finished product fineness can be adjusted arbitrarily between 2-45um, which can meet the needs of high-end powder production and adapt to the development needs of the ultrafine powder market.

Product Features

Working Principle

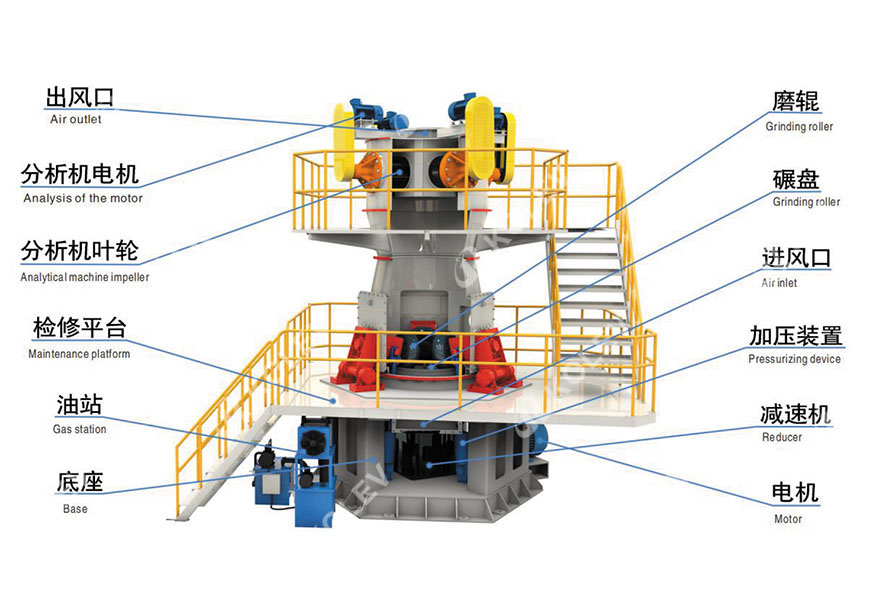

The raw material is broken into 10mm and then sent to the silo. The spiral conveying scale below sends the material evenly into the main grinding machine and drops to the bottom of the mill by the feed funnel. With the rapid rotation of the mill plate, the materials are rapidly dispersed around the mill plate under the action of centrifugal force. The wind blowing in from the bottom is brought to the position of the top analytical machine, and the impeller of the analytical machine rotates rapidly. Materials qualified for fineness can pass through the analytical machine, while those unqualified will fall back to the bottom between the grinding disc and the grinding roller for grinding. The fineness of finished products can be controlled by adjusting the rotational speed of the analytical machine impeller. The finished material is sent to the classifier through the top pipe for sorting. The coarser finished material is directly discharged by the classifier, and the finer finished product is directly collected and discharged by the pulse dust collector through the air duct.

Technical Parameter

Model	Host power(kw)	Number of -head analyzers	Input Size	Moisture entering the mill	Number of grinding rollers	Capacity(t/h)	Finished Size(um)
800	110	4	≤10	≤15	2	1.5-3	10-25
1100	160	4	≤15	≤15	3	3-8	10-25
1300	315	6	≤20	≤15	3	8-15	10-25

Company Profile

Related Cases

Silica Grinding Production Line

The company is a local collection of ore mining, scientific research and development, production and manufacturing, technical services, technical consulting as one of the stone processing enterprises. Due to the need of business development, it is necessary to add a silica grinding production line. After the understanding and field investigation of our company, I was attracted by the professional technology and sophisticated process of Kolev Company, and purchased the complete set of silica grinding production line of our company.

Limestone Grinding Production Line

The company is a local building materials company engaged in the production and sale of limestone powder for a long time. The company adopts scientific management. Due to the development needs of the company, we need to develop high quality limestone products with good purity and fine particle size. After various understanding and field investigation, we are attracted by the professional technology and excellent process of Kolev Company, so we introduce advanced equipment and technology of our company and purchase the full set of limestone grinding production line of our company.

100,000 Tons Fly Ash Deep Processing Project

The company is Kazakhstan a large fly ash processing plant, set fly ash powder research and development, production and sales as one, the products are widely used in cement and concrete and related products. Now, due to the needs of market development, we need to add a high-quality fly ash deep processing production line again. After multiple understanding, comparison and repeated field investigation, we are attracted by the professional technology and sophisticated process of Kolev Company, and purchased the complete set of fly ash deep processing production line equipment of our company.

Gypsum Calcination Grinding Production Line Site

This company is a large local building materials Co., LTD., which is engaged in gypsum processing, production and sales. Due to the development needs of the company, we now want to add a gypsum processing line. Through the understanding and field investigation of our company, we are attracted by the professional technology and sophisticated technology of Kolev Company, so we purchased a full set of gypsum calcining modified grinding line of our company.

Limestone Grinding Powder Processing Project

The company is a local production, deep processing, sales in one of the lime production enterprises, the company's main calcium hydroxide, ash calcium powder, heavy calcium carbonate, light calcium carbonate, etc., with high-quality raw materials, the use of advanced equipment and production technology, the finished products are widely used in coating, building materials, sewage treatment and other fields. Due to the development needs, we need to add a limestone processing production line. After various communication, project analysis and field investigation, we were moved by the sincerity and professionalism of Kolev Company, and purchased the complete set of limestone grinding production line of our company.

Five tons per hour limestone grinding mill production line

The company is a local building materials company engaged in the production and sale of limestone mill. The company adopts scientific management. Due to the development needs of the company, we need to develop high quality limestone products with good purity and fine particle size. After various understanding and field investigation, we are attracted by the professional technology and excellent process of Kolev Company, so we introduce advanced equipment and technology of our company and purchase the full set of limestone grinding production line of our company.

Dolomite Ultrafine Grinding Project

The company is a local long - term engaged in ore grinding production and sales of building materials company. The company adopts scientific management, due to the development needs of the company, need to develop good purity, particle size fine and other high quality dolomite series products, through various understanding and field investigation, by the company's professional technology and sophisticated technology attracted, special introduction of my company's advanced equipment technology, purchased my company's full set of dolomite grinding production line.

limestone grinding production line put into operation
