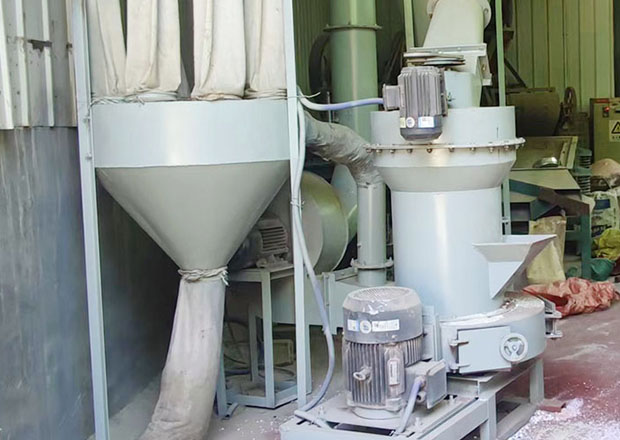

Gypsum Grinding Mill

Gypsum grinding mill can grind gypsum ore into fineness of 16 to 600 mesh gypsum powder. It is mainly used to process gypsum into industrial and construction materials, such as filler in industrial production of glass, plastic rubber, coating asphalt, etc., and as the main raw material in concrete expansion agent, anti-cracking agent, and self-leveling mortar. In addition, gypsum can also be used to improve soil and adjust pH, and is suitable for improving soils such as saline-alkali soil and red soil.

Capacity 8-176t/d

Feed Size ≤30mm

Output Size 1.6-0.023mm

Applicable Materials Gypsum

ISO 9001 CE Certified 20+ Years Global Service

Get Free Quote WhatsApp Chat

Application of Gypsum Powder Product Features Working Principle Technical Parameter Related Articles Company Profile Related Cases

Application of Gypsum Powder

Gypsum powder is a common building material whose main component is calcium sulfate and has the following uses:

Building materials: Gypsum powder can be used to make gypsum boards, gypsum blocks, ceilings, partition boards and other building materials.
Sculptures and crafts: Gypsum powder can be used to make sculptures, models, toys and other crafts.
Medical uses: Gypsum powder can be used to make medical supplies such as plaster bandages and dental models.
Industrial use: Gypsum powder can be used to make molds, casting models, ceramic molds and other industrial supplies.
Agricultural uses: Gypsum powder can be used to improve soil, adjust pH, increase soil fertility, etc.

Product Features

Working Principle

Gypsum grinding mill workflow

1.After big block be crushed into small particle by the jaw crusher.

2.Fall into the silo through the bucket elevator,The electric magnetic vibrating feeder under silo evenly feed the material into the Raymond mill to grinding according to the set quantity of flow.

3.When the main machine of the Raymond mill is working, the grinding roller rolls tightly on the grinding ring under the action of centrifugal force. The material is scooped up by the shovel and sent to the middle of the grinding roller and the grinding ring. The material is broken into powder under the action of the grinding force. Then, under the action of the fan, the powdered materials are blown up and passed through the analyzer. The materials that meet the fineness requirements pass through the analyzer. The materials that do not meet the requirements are returned to the grinding chamber to continue grinding.

4.The qualified material go into the double cylone powder collector with the airflow,then transport to the discharge hole by the discharge screw, the excess air suction into pulse dust collectorby the negative pressure fan and discharge after reach the standard of the dust remove .

5.The finnal products transport to the cylinder silo by Pneumatic transmission device.

Technical Parameter

Model	KL500	KL650	KL780	KL980	KL1100	KL1450	KL1760	KL1950	KL2100
Handling Ability (t/h)	0.5-2	0.5-2.5	1-3	1.5-4	2-6	6-10	8-20	15-30	20-40
Main Motor Power(kw)	7.5	15	18.5	30	45	90	132	185	220
Fan power(kw)	5.5	11	15	22	37	90	132	185	220
Analyst power(kw)	1.1	1.1	2.2	2.2	5.5	7.5	22	37	45
Rotate Speed(r/m)	120	120	120	120	120	90	90	90	90
Diameter of Grinding Ring(mm)	500	650	780	980	1100	1450	1760	1950	2100
Diameter of Grinding Roll(mm)	150	180	260	300	320	400	450	570	630
Maximum Feed(mm)	15	15	15	20	25	30	30	40	40
Finished Particle Size(mm/mesh)	1.6 ------ 0.045mm （16-325 Mesh）					1.6------0.023mm （16-600mesh）
Weight(t)	1.8	2.8	3.8	6.5	14.5	26	48	65	85
