ISO 9001 Certified

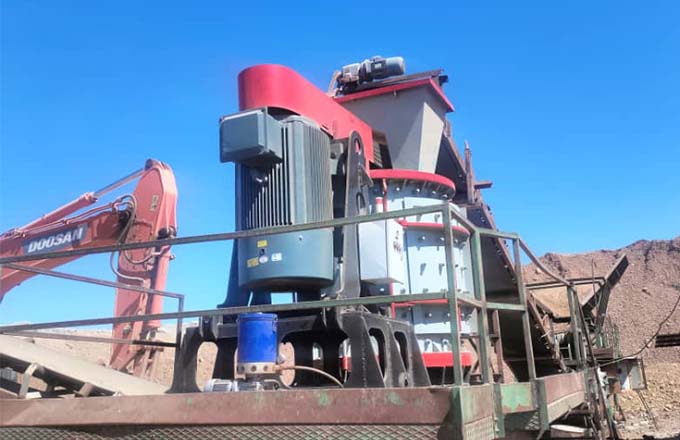

Coarse powder machine

The coarse powder mill is a new type of coarse powder equipment, upgraded from the vertical shaft sand making machine. It features a six-layer rotor structure with hammers arranged according to the crushing ratio. The finished coarse powder can reach over 70% in the 20-140 mesh range. The particle size is rounded, and the fineness can be adjusted. The hammers are made of high-strength alloy and can be rotated in all directions. Wear parts have a long service life. The investment cost is half that of similar coarse powder equipment, and maintenance costs are 30% lower.

Capacity 1-20T/H

Output size 20-120mesh

ISO 9001 CE Certified 20+ Years Global Service

Get Free Quote WhatsApp Chat

Applicable Material Product Features Working Principle Technical Parameter Related Cases

Applicable Material

Suitable for producing coarse powders of medium- to high-hardness stones. This machine is widely used for crushing a variety of materials, including limestone, granite, basalt, diabase, iron ore, copper ore, marble, brown corundum, and quartz sand.

Product Features

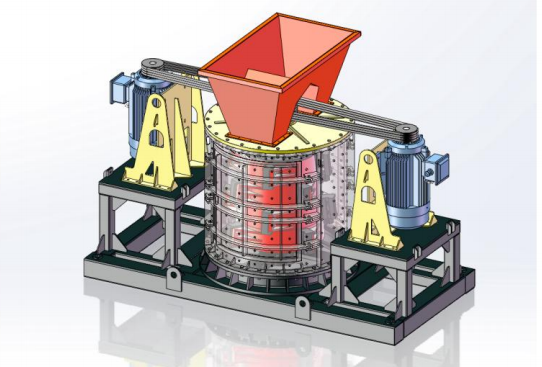

Working Principle

The material first falls vertically from the top of the machine into the high-speed rotating impeller. Then, under the action of high-speed centrifugal force, it collides with another part of the material that is diverted around the impeller in an umbrella-shaped manner. Then, in the strong vortex formed between the impeller and the casing, they collide and rub against each other again or multiple times, causing them to be crushed. Finally, it is discharged from the discharge port at the bottom and then screened to the required finished particle size.

Technical Parameter

Model	Input Size(mm)	Finished Size(mm)	Capacity	Powder	Yield
KL-800	15-30	0.83-0.12	3-6	6-55	≥70%
KL-1000	15-30	0.83-0.12	8-15	6-90
KL-1250	15-30	0.83-0.12	15-30	6-132

Related Cases

Silica Grinding Production Line

The company is a local collection of ore mining, scientific research and development, production and manufacturing, technical services, technical consulting as one of the stone processing enterprises. Due to the need of business development, it is necessary to add a silica grinding production line. After the understanding and field investigation of our company, I was attracted by the professional technology and sophisticated process of Kolev Company, and purchased the complete set of silica grinding production line of our company.

Limestone Grinding Production Line

The company is a local building materials company engaged in the production and sale of limestone powder for a long time. The company adopts scientific management. Due to the development needs of the company, we need to develop high quality limestone products with good purity and fine particle size. After various understanding and field investigation, we are attracted by the professional technology and excellent process of Kolev Company, so we introduce advanced equipment and technology of our company and purchase the full set of limestone grinding production line of our company.

100,000 Tons Fly Ash Deep Processing Project

The company is Kazakhstan a large fly ash processing plant, set fly ash powder research and development, production and sales as one, the products are widely used in cement and concrete and related products. Now, due to the needs of market development, we need to add a high-quality fly ash deep processing production line again. After multiple understanding, comparison and repeated field investigation, we are attracted by the professional technology and sophisticated process of Kolev Company, and purchased the complete set of fly ash deep processing production line equipment of our company.

Gypsum Calcination Grinding Production Line Site

This company is a large local building materials Co., LTD., which is engaged in gypsum processing, production and sales. Due to the development needs of the company, we now want to add a gypsum processing line. Through the understanding and field investigation of our company, we are attracted by the professional technology and sophisticated technology of Kolev Company, so we purchased a full set of gypsum calcining modified grinding line of our company.

Limestone Grinding Powder Processing Project

The company is a local production, deep processing, sales in one of the lime production enterprises, the company's main calcium hydroxide, ash calcium powder, heavy calcium carbonate, light calcium carbonate, etc., with high-quality raw materials, the use of advanced equipment and production technology, the finished products are widely used in coating, building materials, sewage treatment and other fields. Due to the development needs, we need to add a limestone processing production line. After various communication, project analysis and field investigation, we were moved by the sincerity and professionalism of Kolev Company, and purchased the complete set of limestone grinding production line of our company.

Five tons per hour limestone grinding mill production line

The company is a local building materials company engaged in the production and sale of limestone mill. The company adopts scientific management. Due to the development needs of the company, we need to develop high quality limestone products with good purity and fine particle size. After various understanding and field investigation, we are attracted by the professional technology and excellent process of Kolev Company, so we introduce advanced equipment and technology of our company and purchase the full set of limestone grinding production line of our company.

Dolomite Ultrafine Grinding Project

The company is a local long - term engaged in ore grinding production and sales of building materials company. The company adopts scientific management, due to the development needs of the company, need to develop good purity, particle size fine and other high quality dolomite series products, through various understanding and field investigation, by the company's professional technology and sophisticated technology attracted, special introduction of my company's advanced equipment technology, purchased my company's full set of dolomite grinding production line.

limestone grinding production line put into operation
